RACETECH Classic 6 Gauge Set – 85mm 3-3/8″ Electrical Speedometer Tachometer – 52mm 2-1/16″ Voltage Fuel Level Water Temperature Oil Pressure – 140MPH 240-33 Ohm – Black Dial White Needle
$314.99
Guaranteed Safe Checkout
Features & Compatibility
Price: $314.99
(as of Apr 18, 2026 17:45:53 UTC – Details)
Product description
Special features

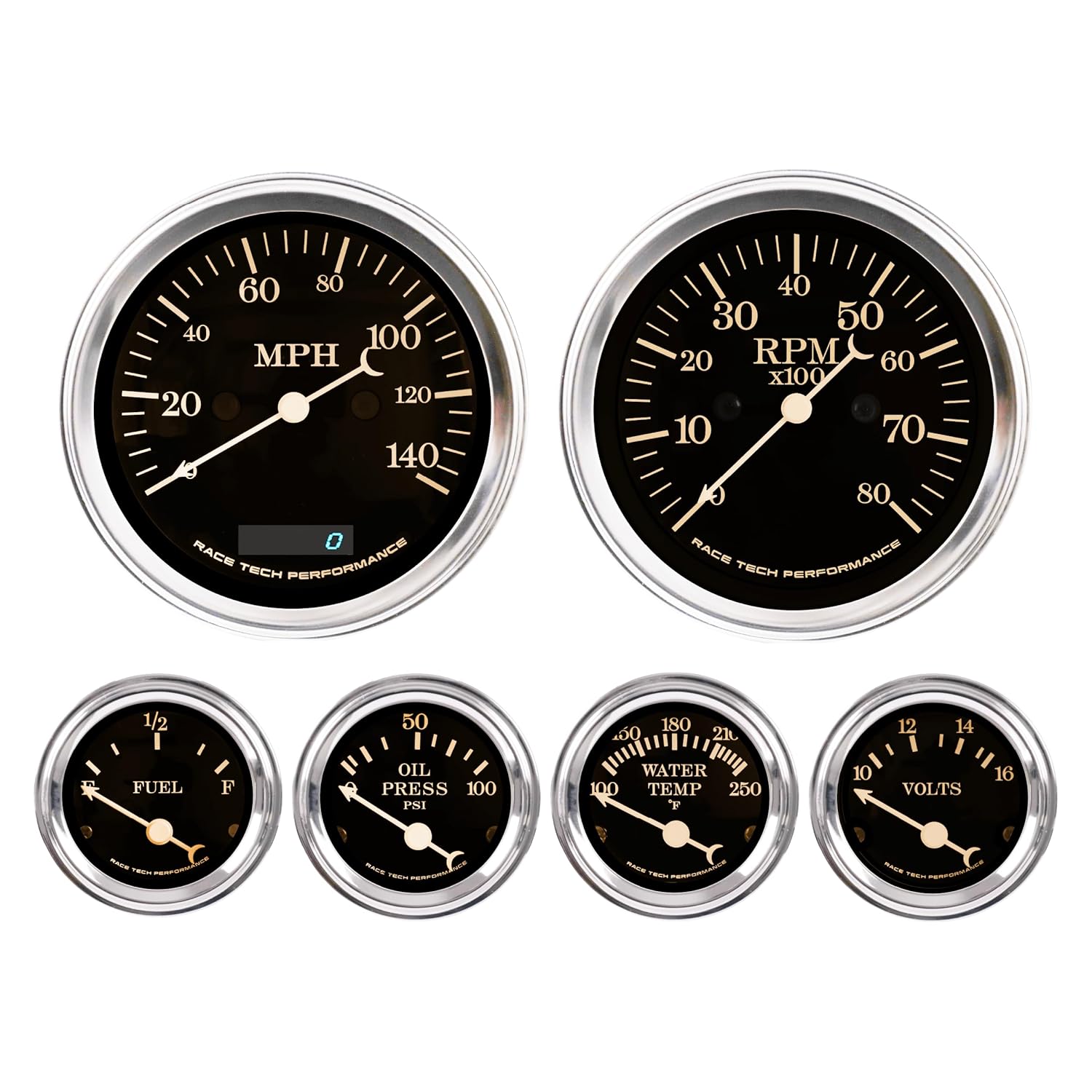

Black Dial Instrument Cluster
Classic Black Dial With Crisp White Pointers. Designed Exclusively For Automotive Instrument Clusters.

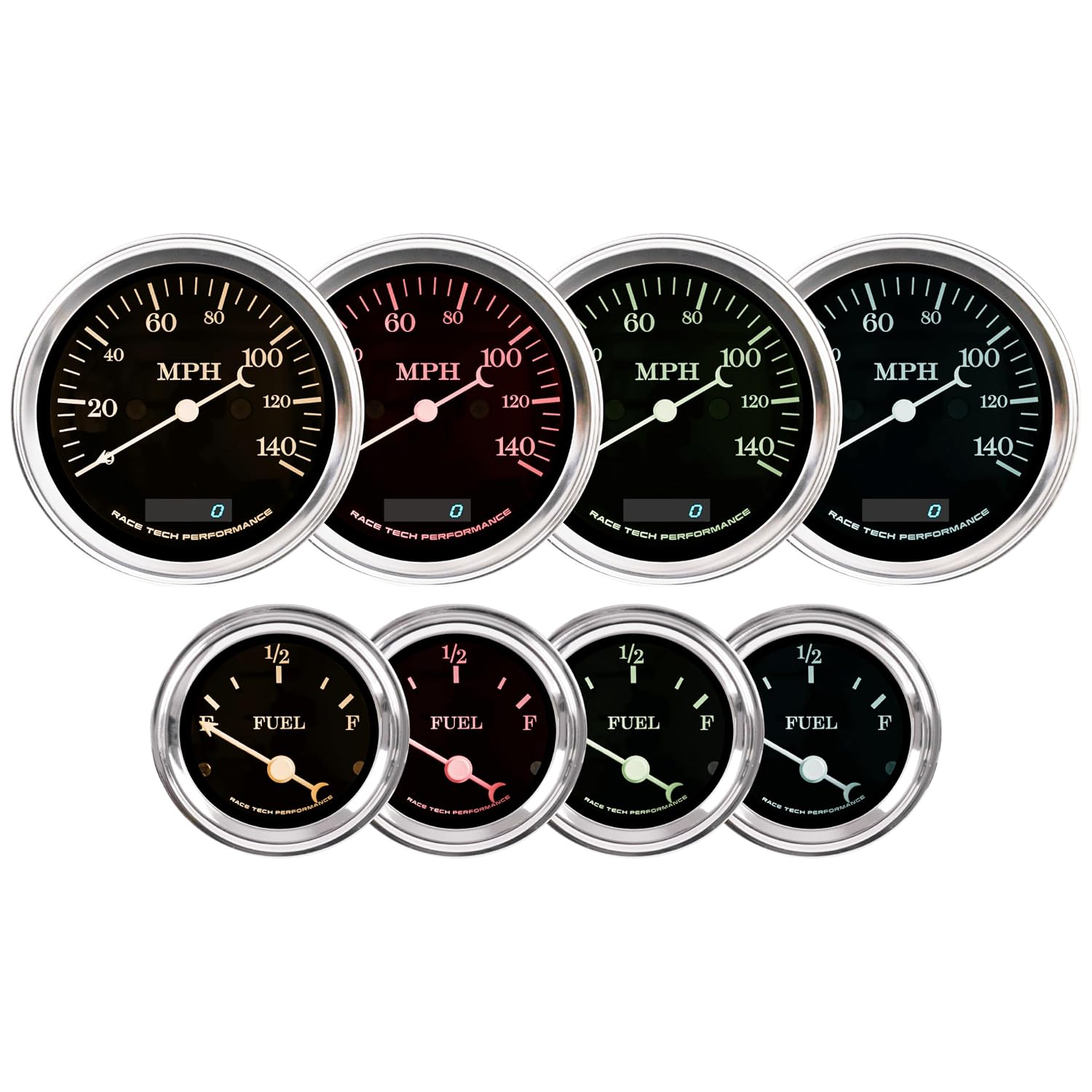

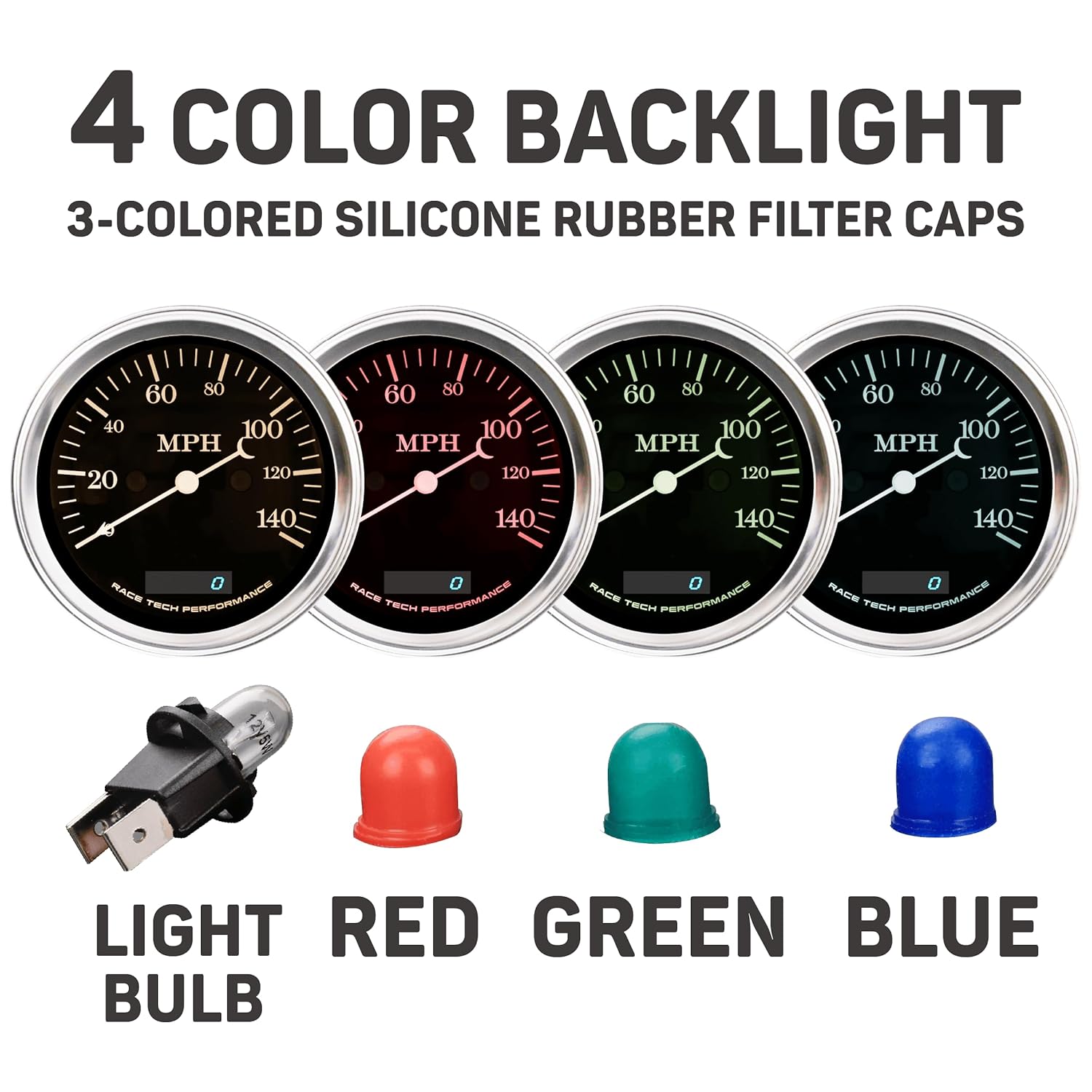

4-Color Backlight Customization
Includes Red, Green, And Blue Bulb Covers For A Personalized Look.
That Is Easy To Install And Replace
Each Gauge Includes a Set of Colored Bulb Covers in Red, Green, and Blue, Providing You With 4 Color Options For Every Gauge.

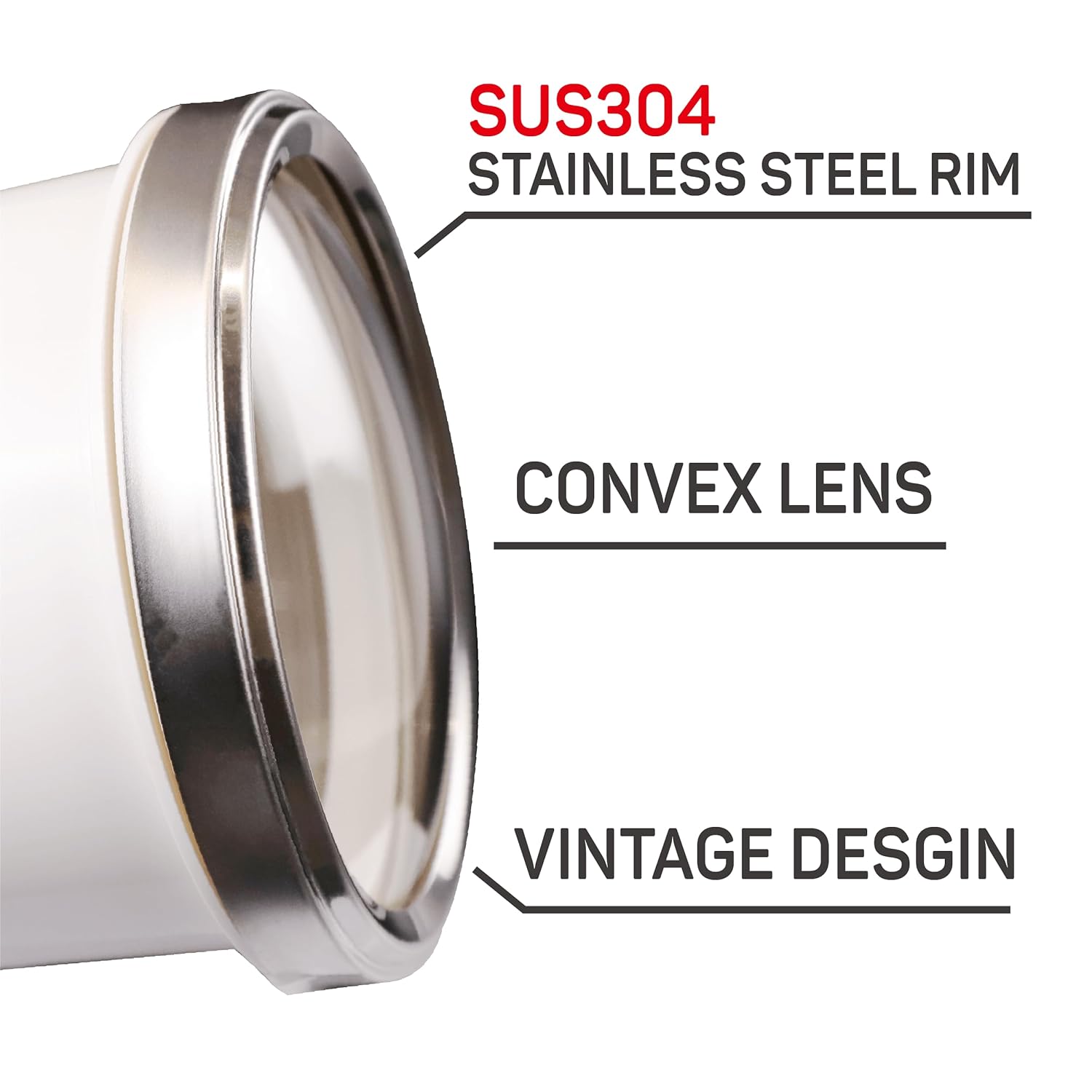

Instrument Clusters Vintage Style
Our Instrument Clusters
Feature a Stainless Steel Rim and a Convex Lens, Meticulously Designed For a Premium Look.

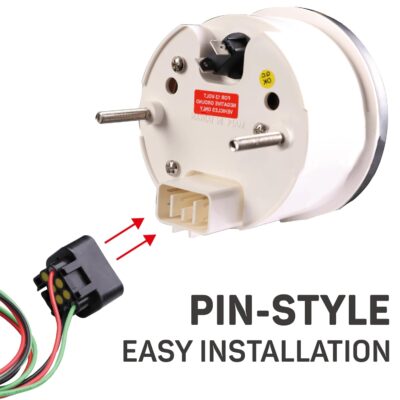

Easy Installation
85mm (3-3/8″) Tachometer With PIN-STYLE Design For Easy Wiring And Installation.

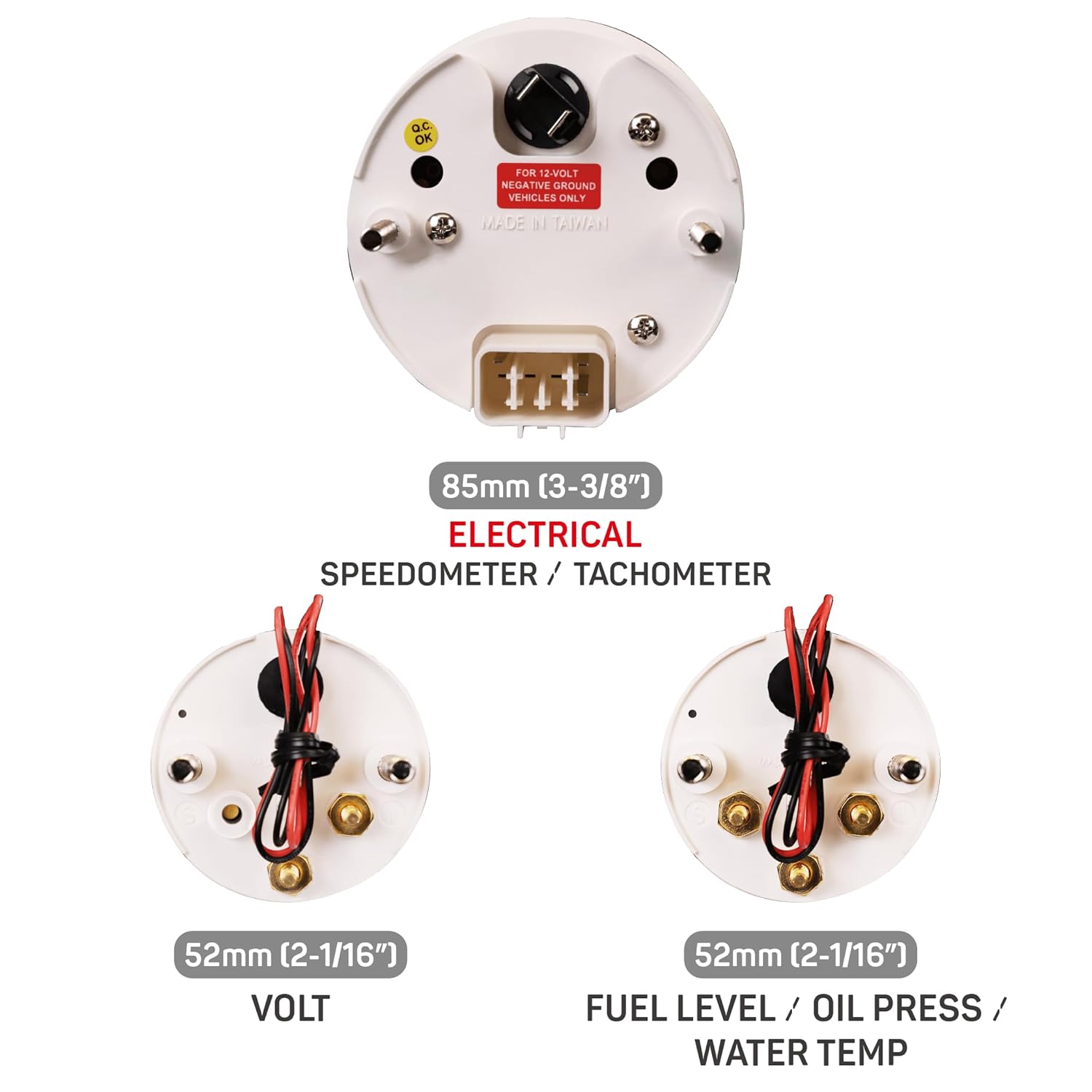

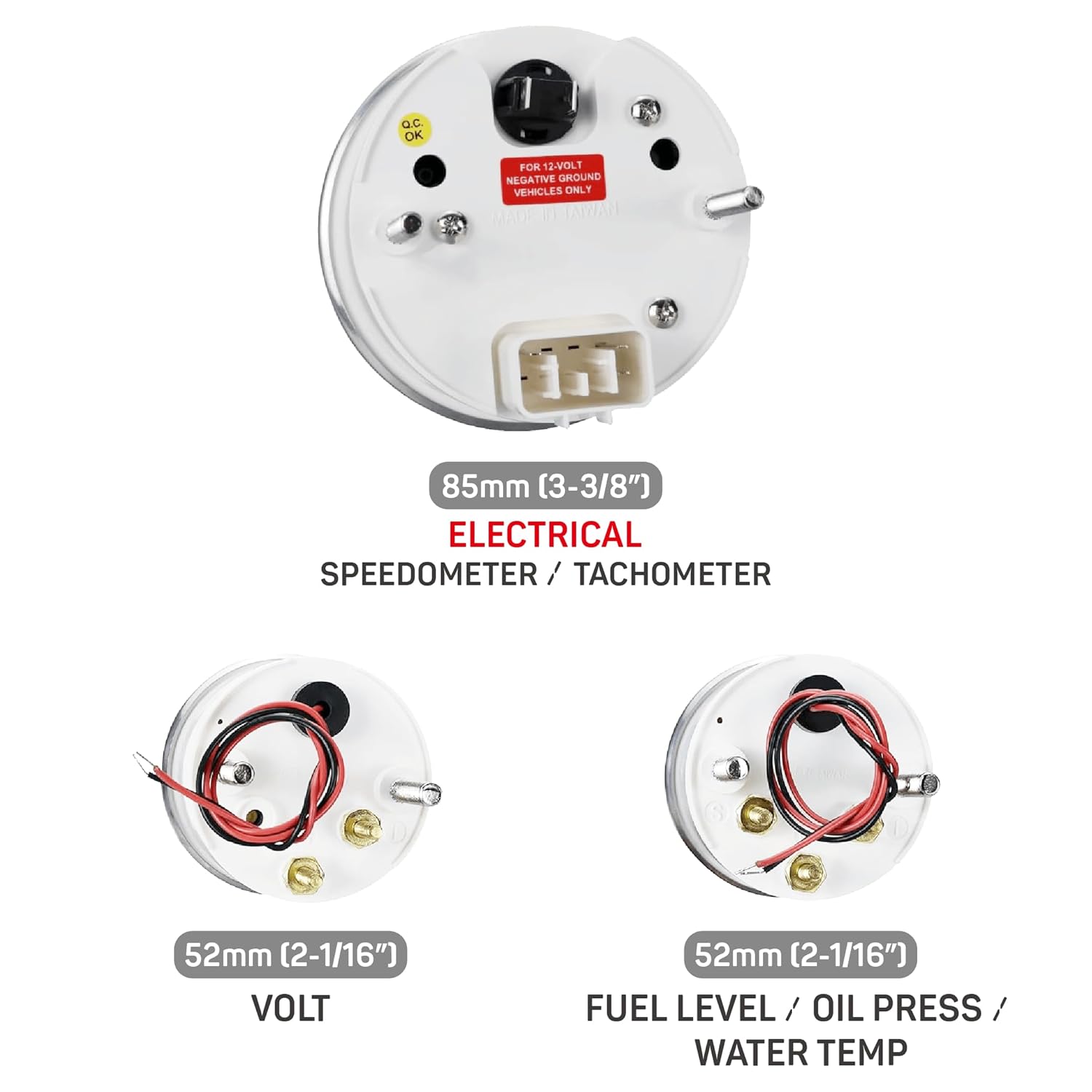

Specifications and Dimensions of Gauges.
Our 85mm (3-3/8″) Speedometer And Tachometer Have A Depth Of 72mm (2.83″).
Our 52mm (2-1/16″) Gauges, Such As Fuel, Oil, Water Temp, And Volt, Have A Depth Of 70mm (2.75″).
Instrument sensor
Filtering for Optimal Performance
The Tachometer Includes:
No. 22 – Suitable for Single Coil or Point-Style Coil Ignition Systems.
No. 24 – Compatible with High Energy Ignition (HEI) Systems.
Fuel Sender
Fuel Level Gauge includes Fuel Level Sender (240~33 Ohm)
Oil Sender And Water Temp Sensor
Oil Pressure Gauge Includes Oil Pressure Sensor (1/8NPT) And 1/8″ NPT Female 45 Deg Fitting, 1/8″ NPT Male Coupler Fitting, And 1/2″ NPT Male To 1/8″ NPT Female Adaptor Fitting
Water Temp Gauge Includes Water Temp Sensor (1/8NPT)
Include GPS Speed Sensor
Antenna with 2m (78.74Inch / 6.56foot) cableWaterproof GPS Antenna12V
Include Signal Converter
67Hz at 60KPH1Hz refresh rate6000 pulse/mile
Include Signal Converter Wire
Wire harness pigtail with connector
Include Adjustment Stick (VR roll)
to adjust to the accurate SPEED.
GPS Speed Sensor
Signal converter
Signal Converter Wire
Adjustment Stick (VR roll)

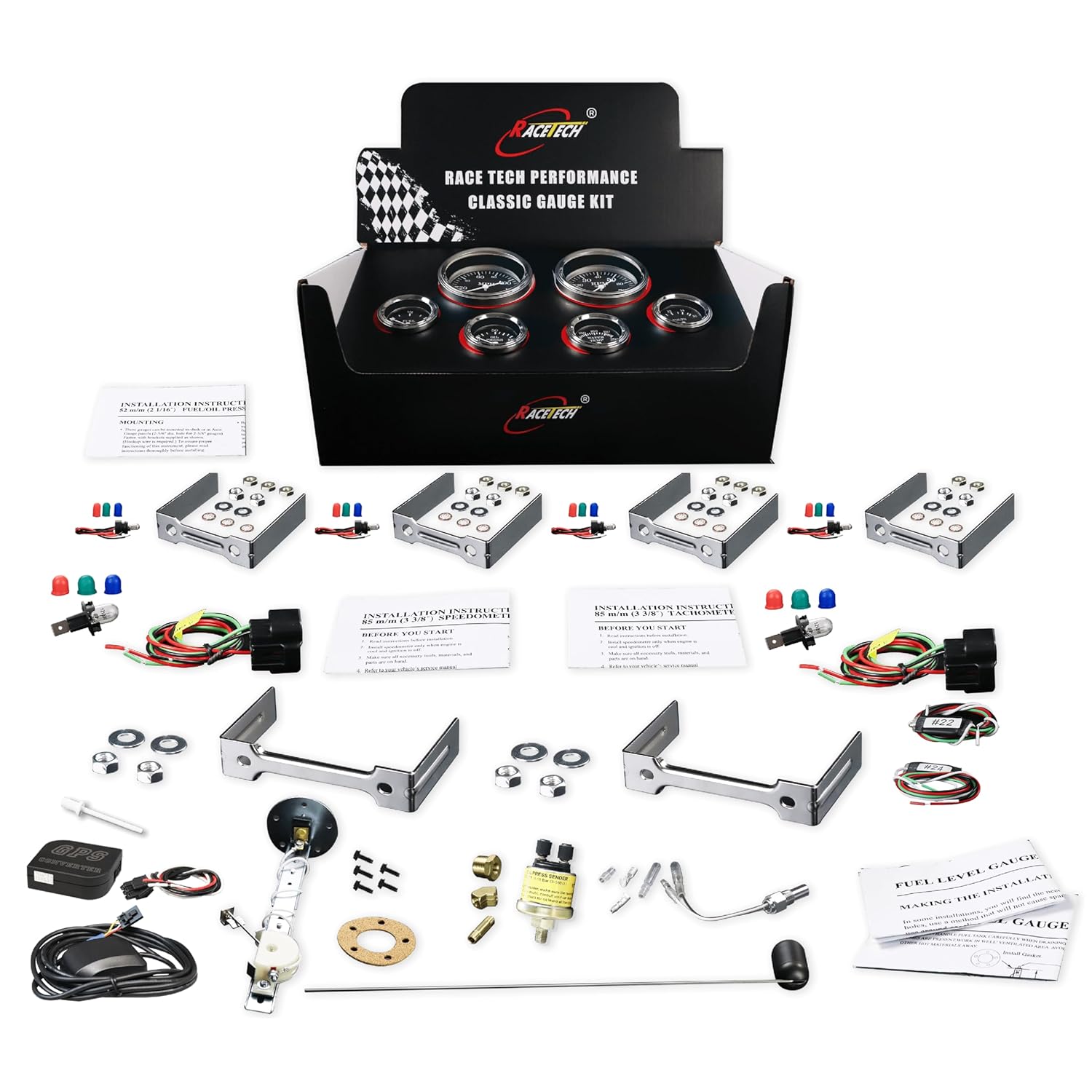

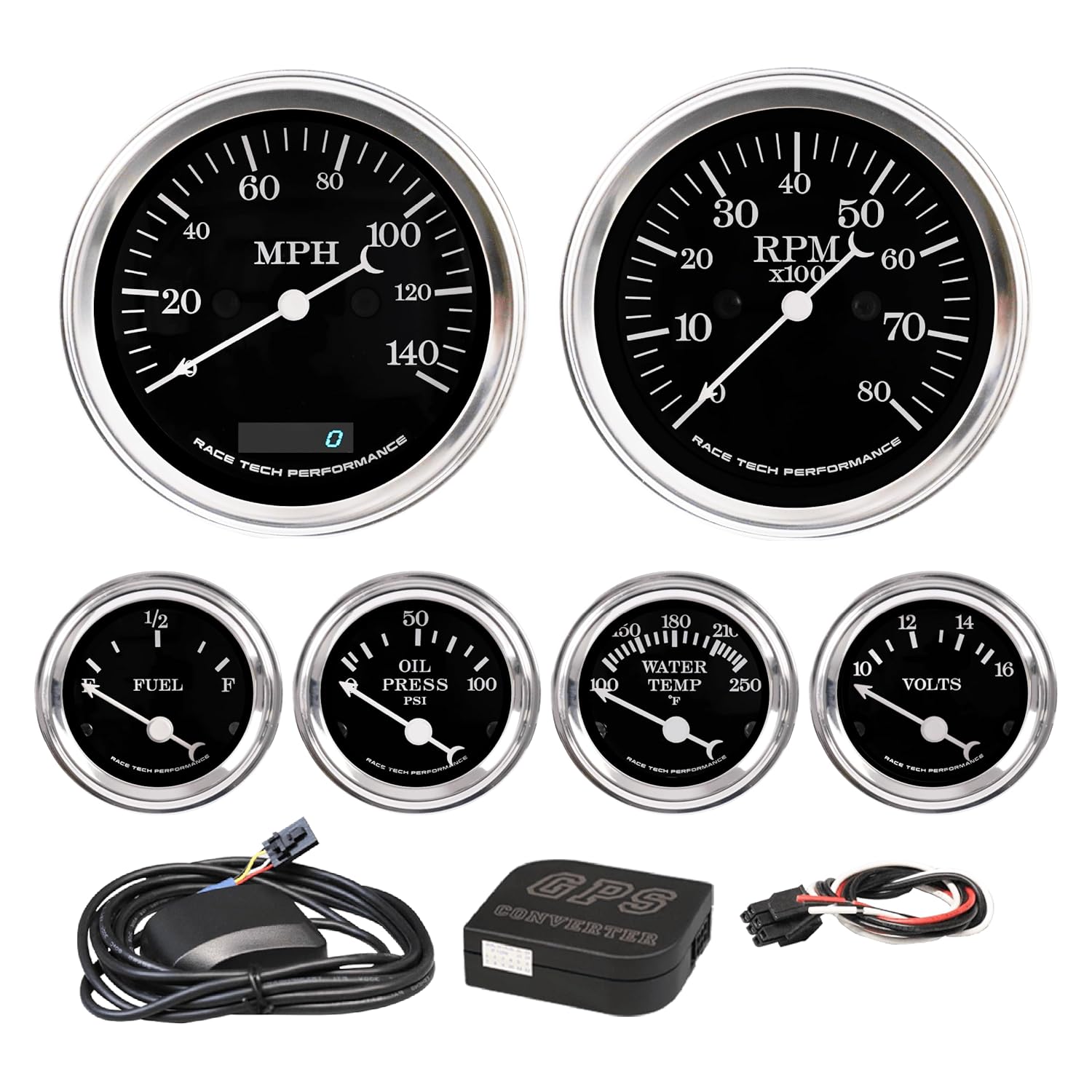

The Entire Set Includes
85mm (3-3/8″) Electrical Speedometer 、Tachometer x152mm (2-1/16″) Fuel Level Gauge、Oil Pressure Gauge、 Water Temp Gauge、Volt Gauge x1Power and Signal Wire Harness One each for Speedometer & TachometerLight Bulb x6Each Gauge Has Red, Green, And Blue Colored Bulb Covers x6Adjustment Stick (VR roll) for Speedometer x1GPS Speed Sensor & Signal Converter x1Signal Filter for Tachometer One each of #22 and #24Fuel Level Sensor Set(240~33Ohm) x1Oil Pressure Sensor(1/8NPT) x1Oil Pressure Adaptor Set: 1/8″ NPT female 45 deg fitting, 1/8″ NPT male coupler fitting, and 1/2″ NPT male to 1/8″ NPT female adaptor fittingWater Temp Sensor(1/8NPT) x185mm U-Bracket Set x252mm U-Bracket Set x4Each Mounting Hardware for Gauges
SIZES: 85mm (3-3/8″) – Speedometer & Tachometer. 52mm (2-1/16″) – Fuel Level, Water Temperature, Oil Pressure & Volt.
PRODUCT DETAILS: GPS Speedometer: 0-140MPH With Odometer, Tachometer: 0 – 8000RPM, Fuel Level Gauge: E-F & Resistance 240-33 ohms, Oil Pressure Gauge: 0-100 PSI, Water Temperature Gauge: 100-250 °F, Voltmeter:10-16 V. Tachometer Fits Any 1 to 9 Cylinder Gas Powered Engine. Gauge Set Requires 12 Volt Negative Ground Systems.
FEATURES: Swiss Stepper Motor Movement, In-Dash Design, Black Dial with White Needle, Light Bulb Illumination, Digital Odometer, Convex Clear Lens, SUS304 Stainless Steel Bezel, Plastic Housing, Pin-Style Easy Installation.
INCLUDES: 6 Gauges, Power and Signal Wire Harness x2, Light Bulb x6, Red Green Blue Bulb Covers x6, GPS Sensor and GPS Converter for Speedometer, Signal Filter #22 #24, Fuel Level Sender (240 – 33 ohms), Oil Pressure Sensor (Thread Size: 1/8 NPT) and Includes Sensor Adapters For Oil Pressure Gauge, Water Temperature Sensor (Thread Size: 1/8 NPT), Mounting Hardware x6, Installation Instructions.
One-Year Warranty For Non-Human Factor Damage & Free Lifetime Technical Support. If you experience any issues with your product, please contact us through Amazon first. Our team will be happy to assist you with troubleshooting or replacements.
Made in Taiwan.
