Nilight 16AWG Heavy Duty Wiring Harness Kit – 12V 5PIN Rocker Switch Relay Blade Fuse Socket Connector – Compatible with 9005 9006 9140 9145 HB3 H10 Fog Light Bulbs

Price: $169.99 - $17.99
(as of Mar 30, 2026 11:15:37 UTC – Details)

Product description

Fog Light Wiring Harness Kit

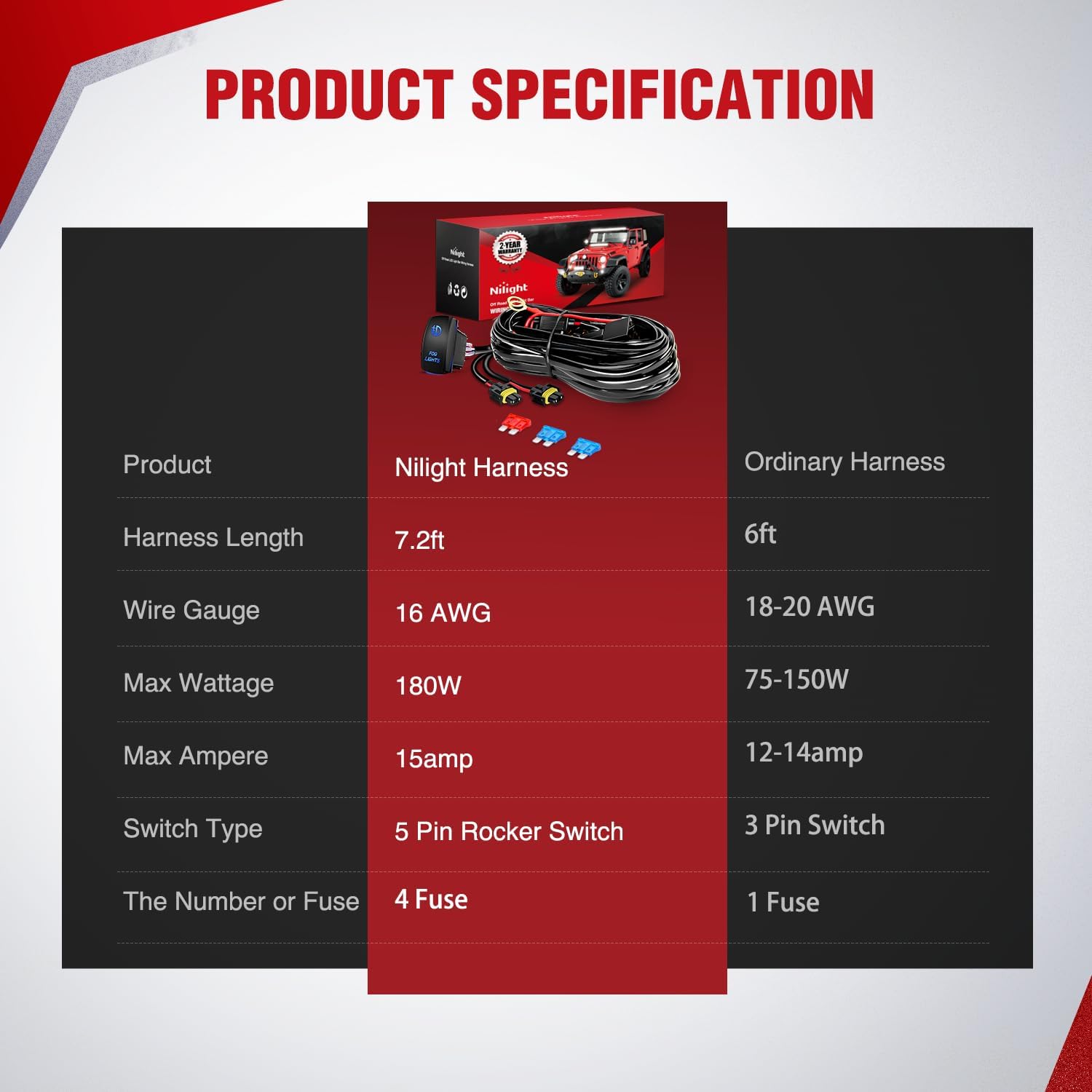

Working Voltage: 12V DC；Max Working Current: 15A；Max Wattage: 180W；Wire Gauge: 16 AWG;

Automotive relay, inline blade fuse with three extra fuses；

Switch: 5 Pin Rocker Switch；

Note: Please finish the installation by professionals or install the wiring harness under the guidance of professionals.

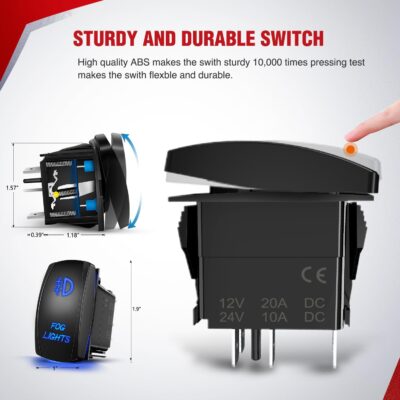

Features Durable In Use

The switch is very flexible for turning on or off. It can stand up to 10,000 times pressing under normal use.

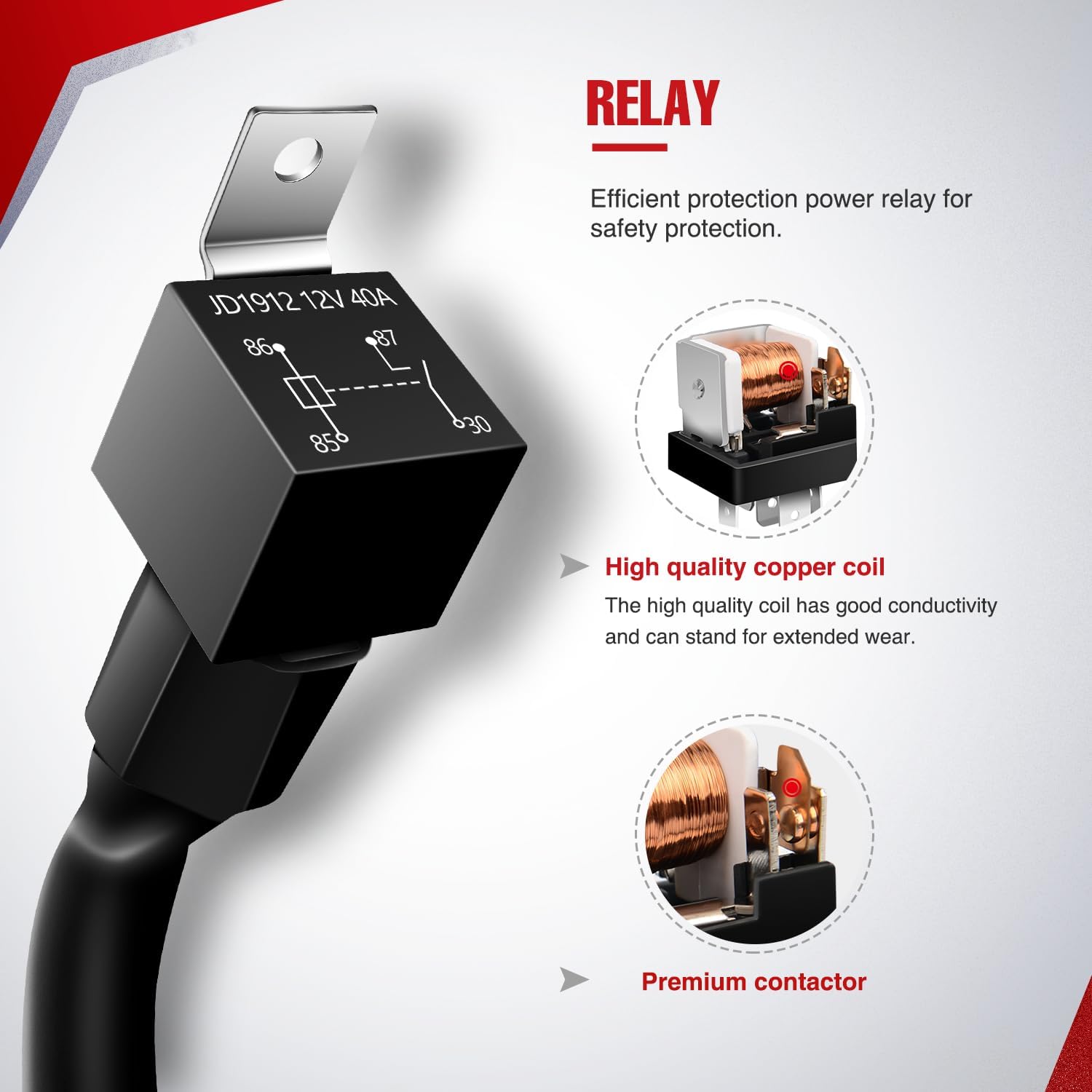

Automotive Relay

The relay is high quality made with well conductive pins. It effectively protects the circuit and the lighting system.

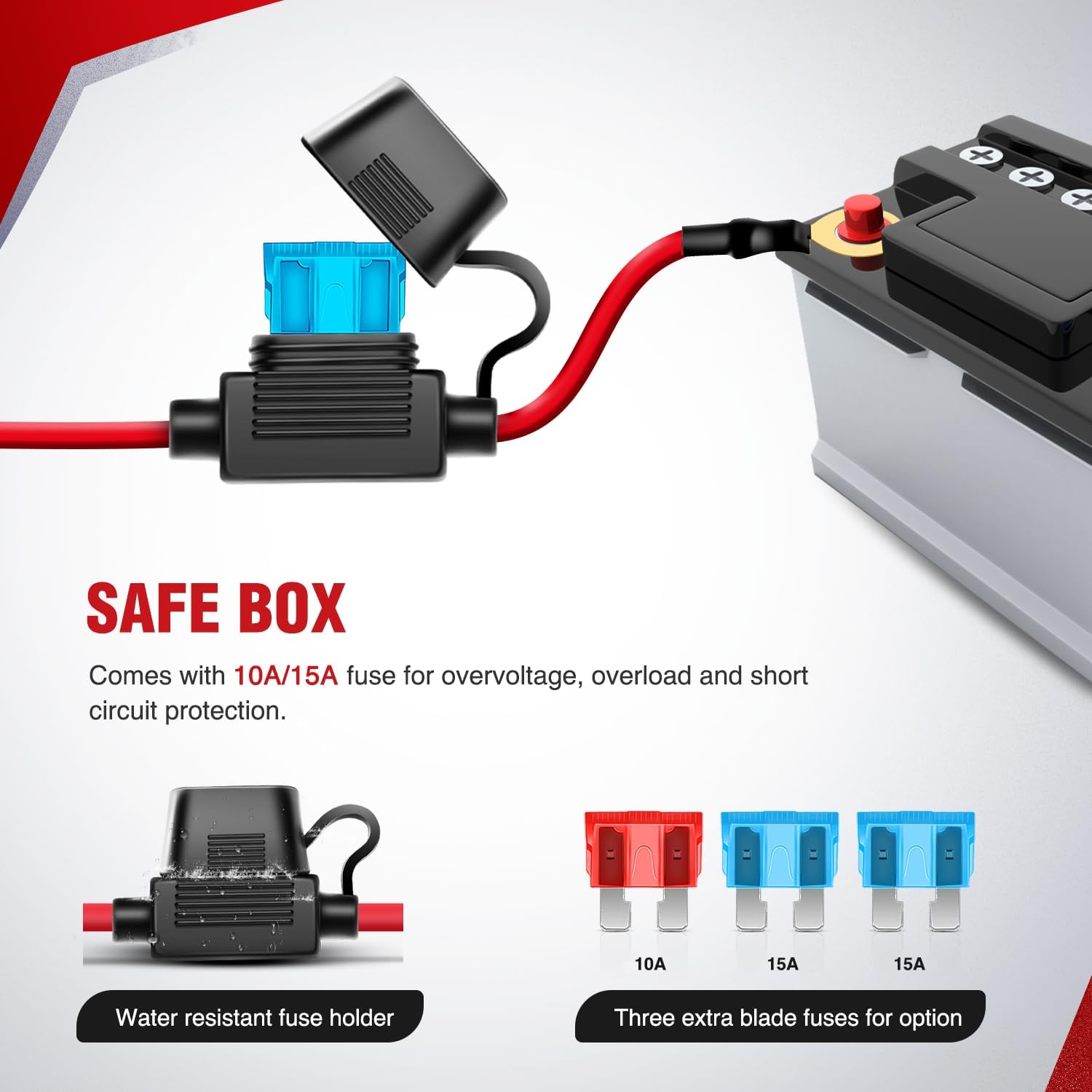

Inline Fuse with Fuse Holder

Inline Fuse against over-current and short circuit. Specially designed cap, efficiently prevent water and dust from entering.

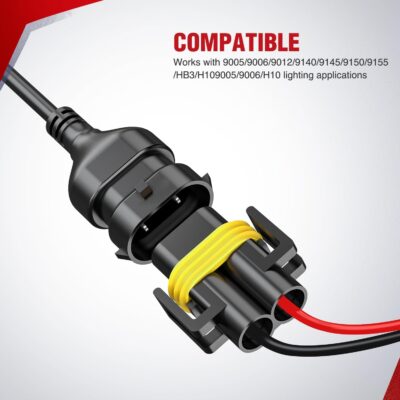

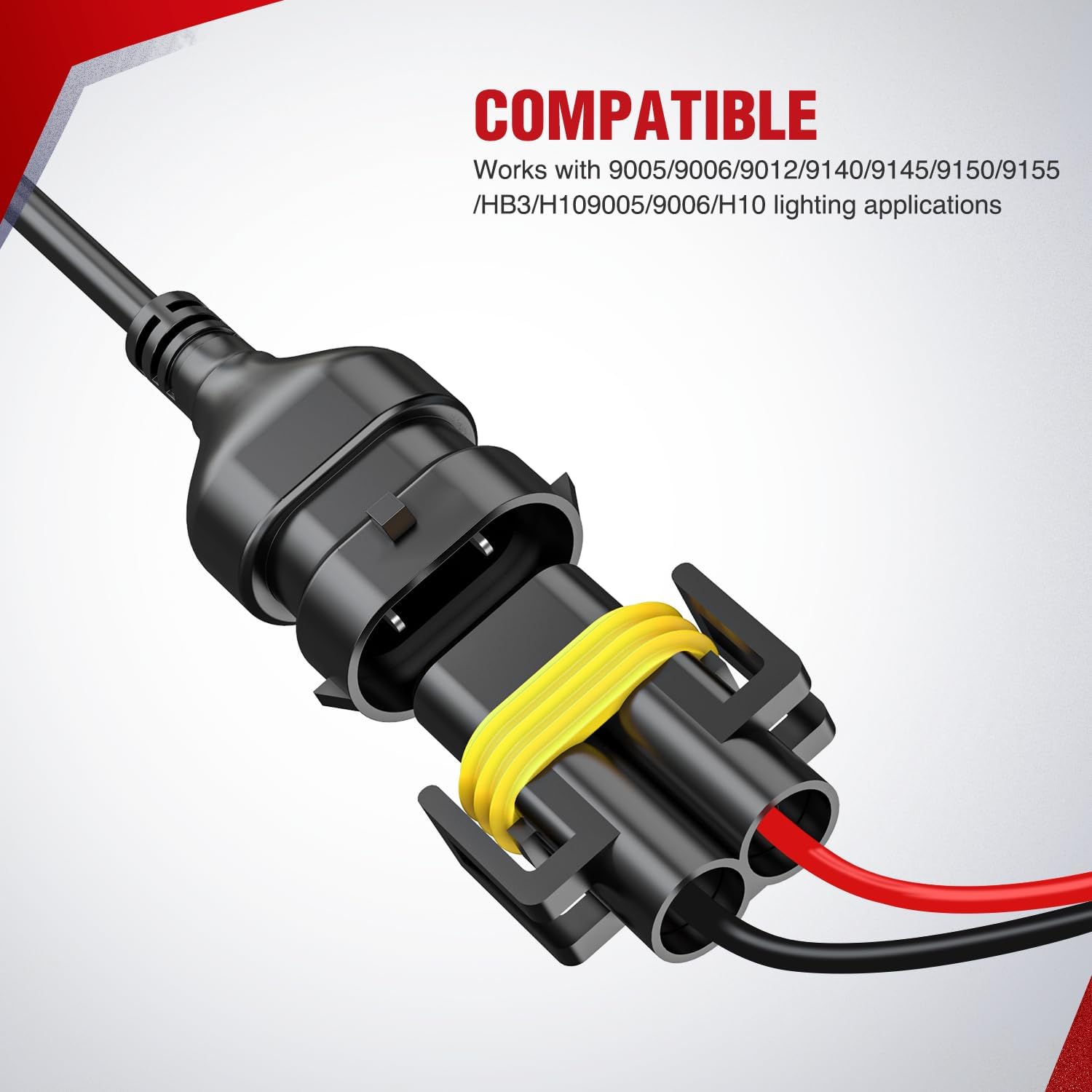

Plug and Play

9005 9006 9012 9140 9145 9150 9155 HB3 H10 Connector,Plug and play, easy to connect.

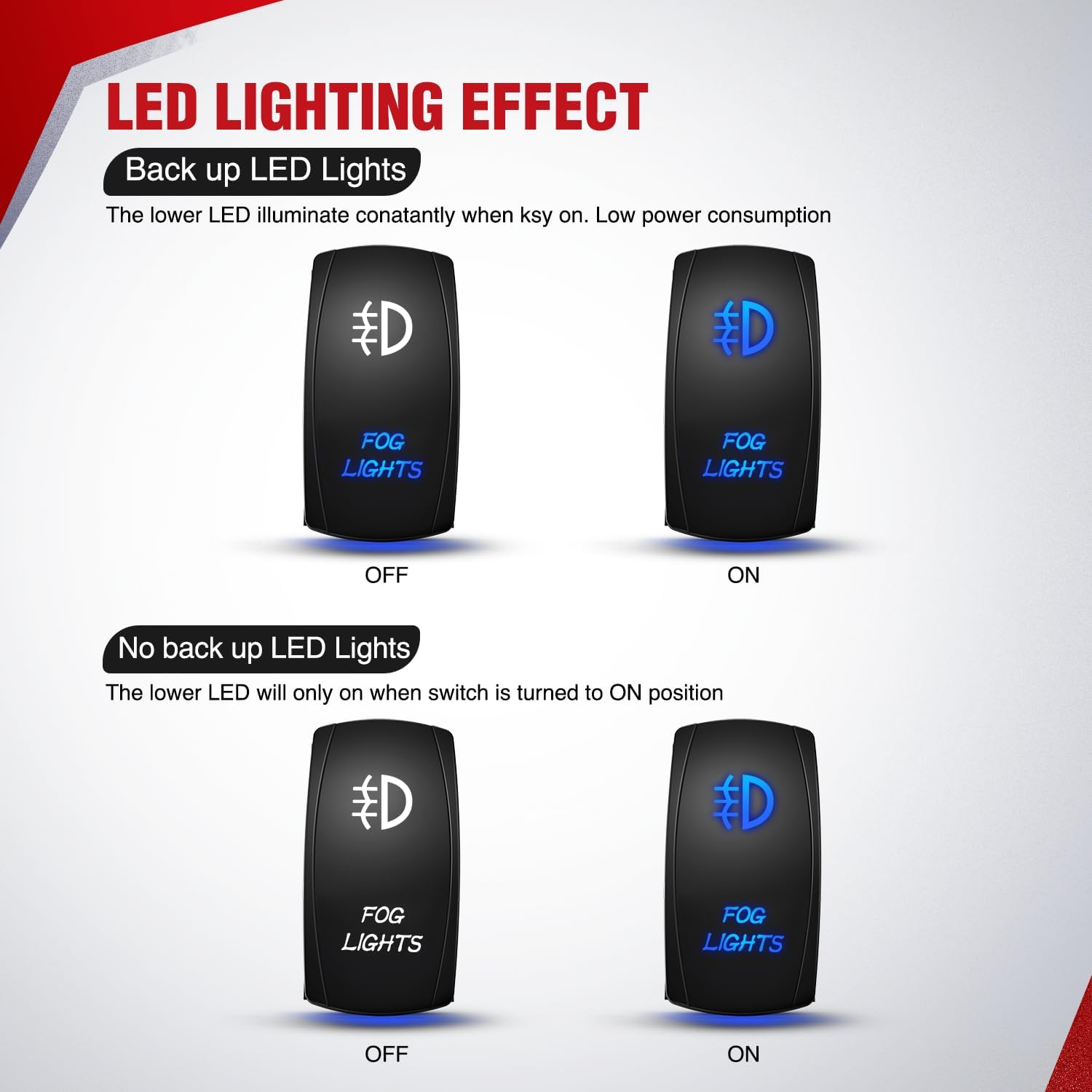

LED Lighting Effect Backup Lights

The lower LED illuminates constantly even when the switch is OFF, easy to find in the dark.

No Backup Lights

The lower LED will illuminate only when the switch is turned to ON position.

Application

Compatible for 9005 9006 9012 9140 9145 9150 9155 HB3 H10 Fog light bulbs

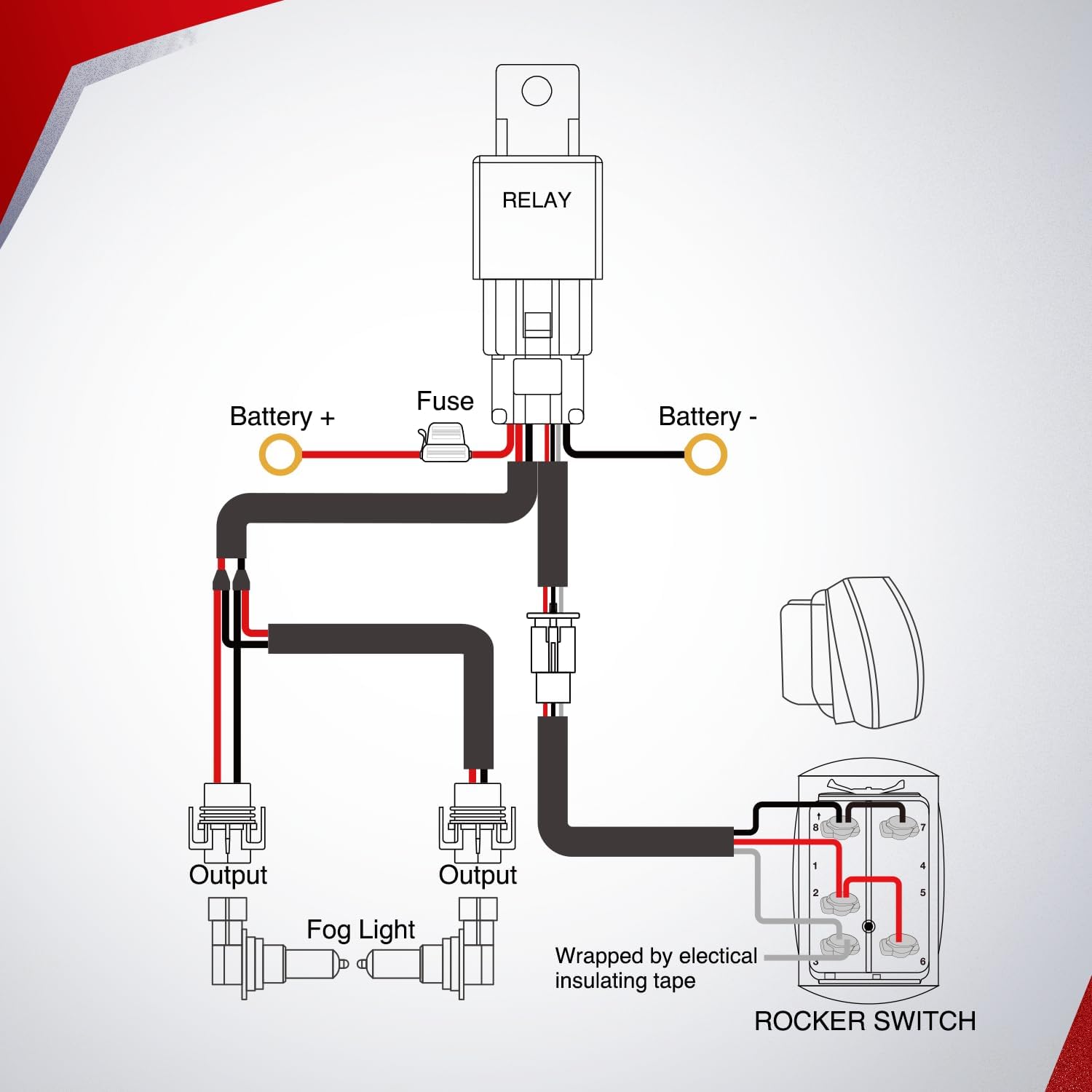

Wiring Diagram

Related Products for This Item

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Chevy Silverado Headlight

Customer Reviews

4.6 out of 5 stars 288

4.4 out of 5 stars 95

4.2 out of 5 stars 95

4.4 out of 5 stars 245

4.0 out of 5 stars 770

—

4.5 out of 5 stars 84

Price

$17.99$17.99

—

$24.28$24.28

$35.99$35.99

$91.91$91.91

—

—

Model

Fog Light Wiring Harness Kit

Chevy Silverado&Avalanche

Chevy Silverado

Dodge&Chrysler&Mitsubishi

C10&C/K&Silverado&Suburban

Chevy Silverado

Chevy Avalanche

Year

/

02-07Silverado 02-06Avalanche

1999-2002 Chevy Silverado

05-09 Dakota;07-09 Durango

94-98C10&CK&Silverado&Suburban

2007-2014 Silverado

2002-2006 Chevy Avalanche w/o

Light Source

Halogen/LED

Halogen

Halogen

Halogen

Halogen

Halogen

Halogen

Bulb Type

H11,H9,H8,886,889,892,880,etc

H10 12V 42W

H10 12V 42W

H10 12V 42W

9005;9006;3457A;W5W

9005;H11;3157NA

9005;9006;3157A;W5W

Package

1 PCS

A Pair(Driver&Passenger Side)

A Pair(Driver&Passenger Side)

A Pair(Driver&Passenger Side)

A Pair(Driver&Passenger Side)

A Pair(Driver&Passenger Side)

A Pair(Driver&Passenger Side)

Package Dimensions ‏ : ‎ 7.8 x 3.15 x 2.72 inches; 14.29 ounces
Item model number ‏ : ‎ FOG-W201
Date First Available ‏ : ‎ September 11, 2023
Manufacturer ‏ : ‎ Nilight
ASIN ‏ : ‎ B0CHRZG9ZH
Best Sellers Rank: #25,765 in Automotive (See Top 100 in Automotive) #275 in Automotive Replacement Electrical Wiring Harnesses
Customer Reviews: 4.6 4.6 out of 5 stars (288) var dpAcrHasRegisteredArcLinkClickAction; P.when(‘A’, ‘ready’).execute(function(A) { if (dpAcrHasRegisteredArcLinkClickAction !== true) { dpAcrHasRegisteredArcLinkClickAction = true; A.declarative( ‘acrLink-click-metrics’, ‘click’, { “allowLinkDefault”: true }, function (event) { if (window.ue) { ue.count(“acrLinkClickCount”, (ue.count(“acrLinkClickCount”) || 0) + 1); } } ); } }); P.when(‘A’, ‘cf’).execute(function(A) { A.declarative(‘acrStarsLink-click-metrics’, ‘click’, { “allowLinkDefault” : true }, function(event){ if(window.ue) { ue.count(“acrStarsLinkWithPopoverClickCount”, (ue.count(“acrStarsLinkWithPopoverClickCount”) || 0) + 1); } }); });
Application: This Wiring harness is designed for fog lights. The socket connector is compatible with 9005 9006 9012 9140 9145 9150 9155 HB3 H10 Fog light bulbs. The wiring harness kit can be connected to the light source within 180W. If your power supply is 24V, please replace the original 12 V relay with a 24V relay.
5 Pin Rocker Switch: Nilight 5 pin on-off rocker switch with SPST design (single pole single Throw), simple installation, freely turn on or off the light. Built-in two premium LEDs Emits soft light to illuminate the patterns, easy for you to find the switch in the dark.

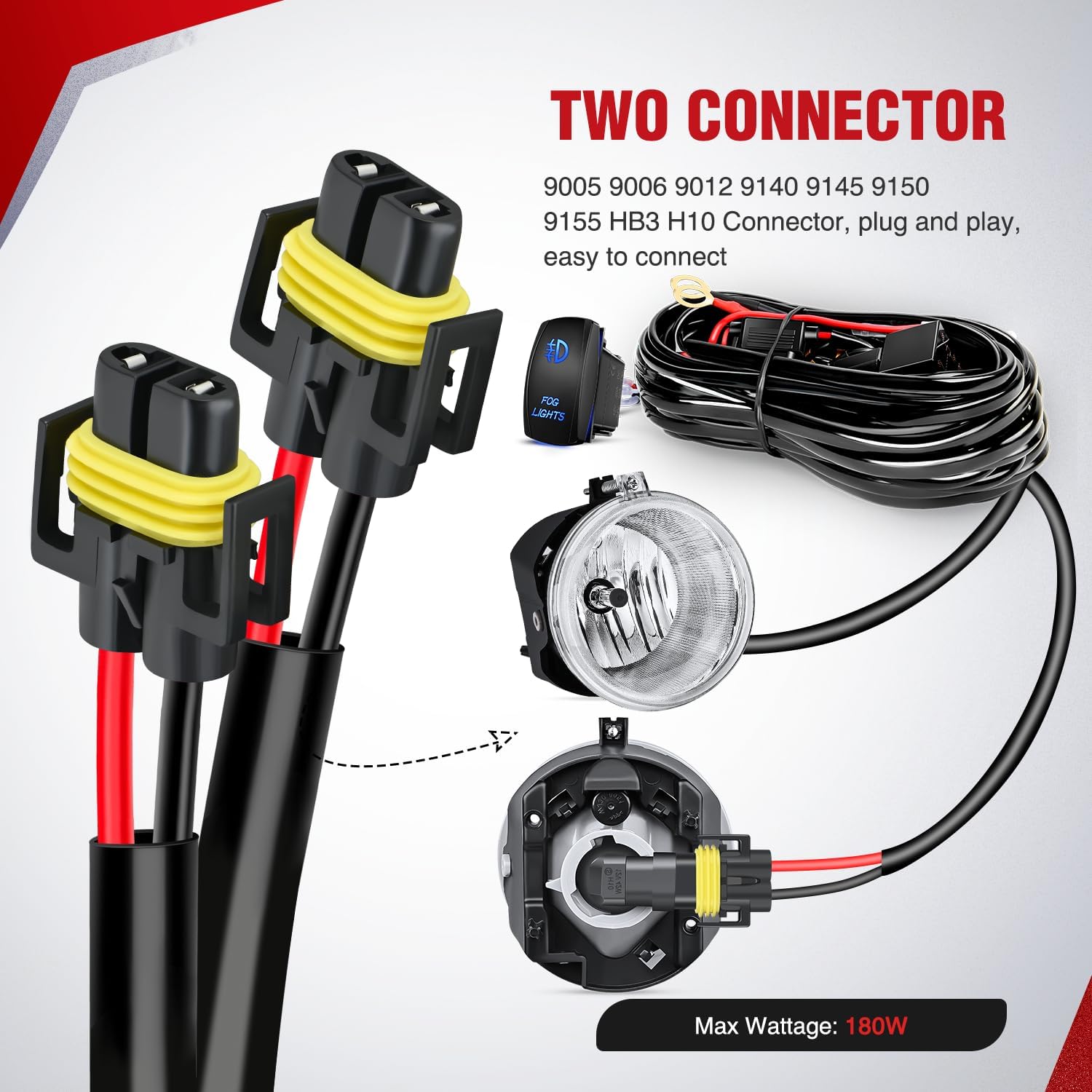

Two Leads Available: 7.2 feet extendable wiring harness, two sets of light output connectors for dual light fixtures less than 180W.
Circuit protection: Power relay for safety protection and conversion circuit. Blade fuse protects the circuit when over-current or short circuit occurs. Its load capacity is up to 180W and comes with two extra fuses.

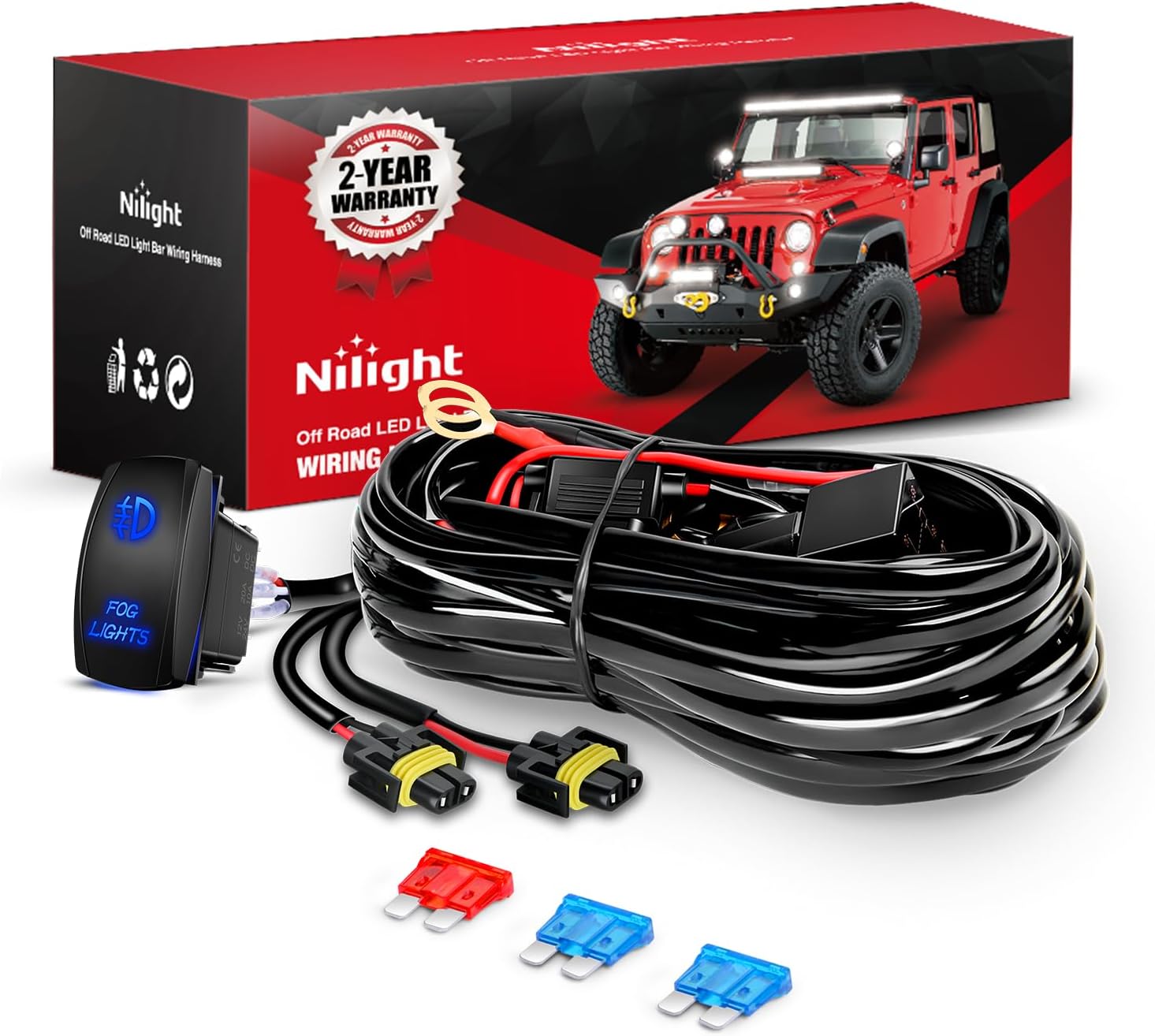

Package includes: 1 x fog light wiring harness kit and extra blade fuses. A wiring diagram.
