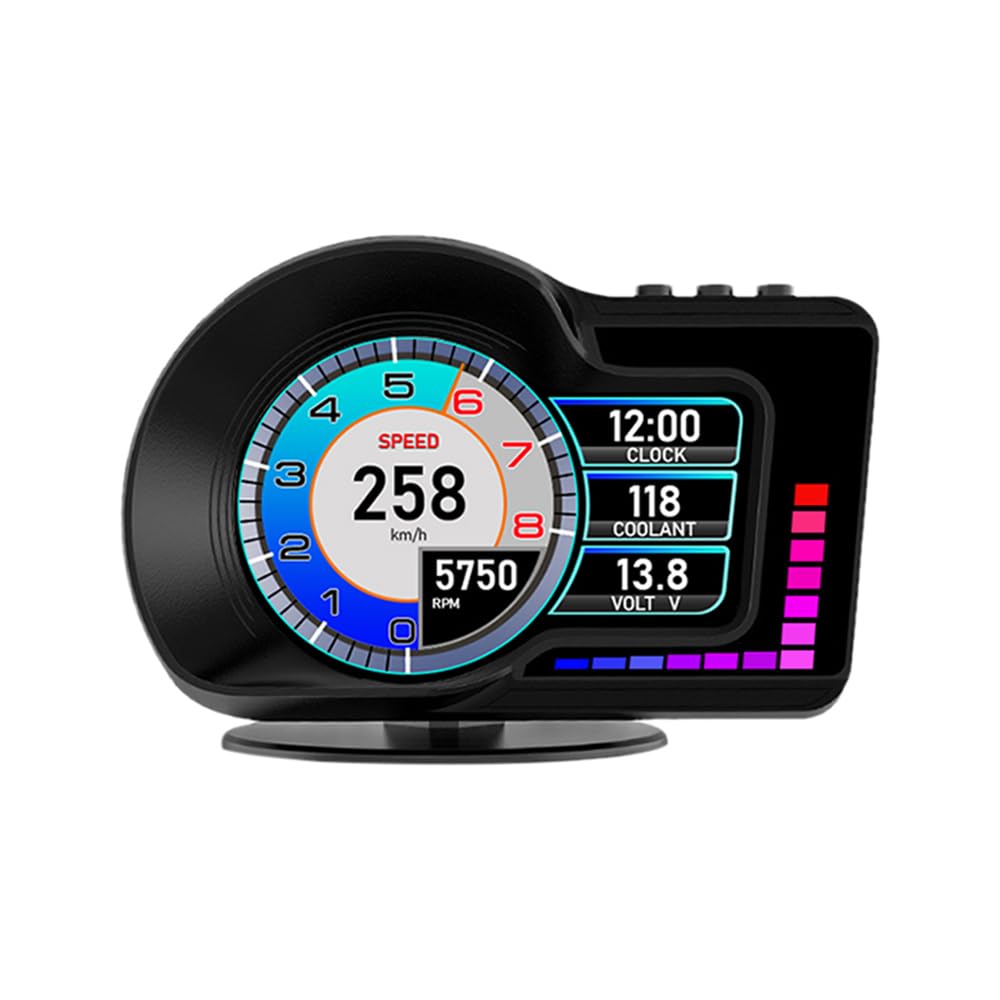

Head Up Display HUD F16 with OBD2 + GPS Dual System Digtial Speedometer, 3.5″ IPS Smart Gauge, Speed, Voltage, Engine RPM, OverSpeed Warning, Water Temperature, Turbo Pressure for Cars After 2008

Price: $49.99
(as of Mar 30, 2026 07:07:49 UTC – Details)

Product description

Heads Up Display OBD2 & GPS Mode

Say Goodbye to Accidents: The heads up display is designed to keep your eyes on the road while you check your car’s information, avoid breaking the rules of the road and focus more on driving

OBD Mode Function:

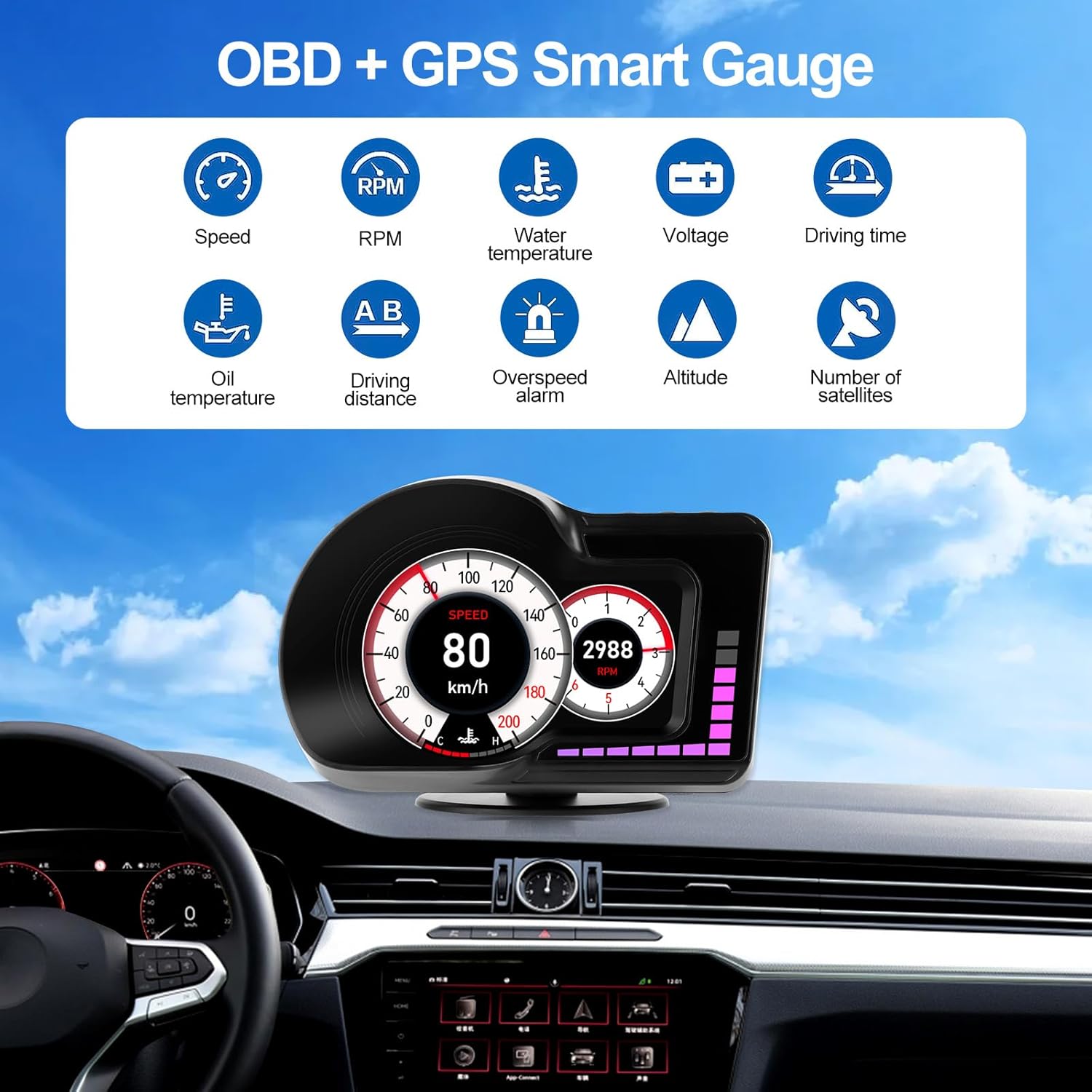

Speed, satellite time, engine RPM, water temperature, oil temperature, voltage, driving time, driving direction, driving distance, turbo pressure, number of satellites, altitude, latitude and longitude, acceleration test, brake test, etc.

OBD Mode Alarm:

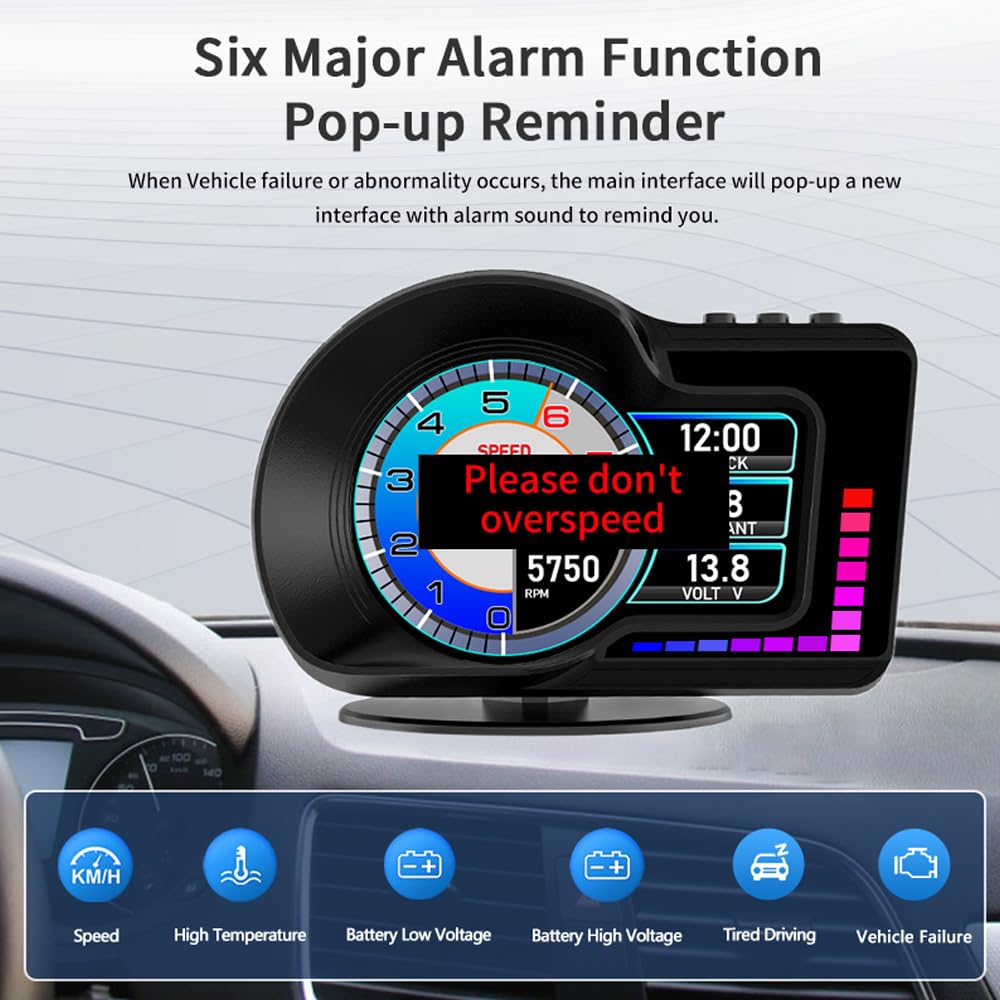

Over-speed alarm, high water temperature alarm, lower battery alarm, fatigue driving reminder, detecting and eliminating fault code

GPS Mode Function:

GPS speed, altitude, driving time, driving direction, driving distance, time, date

More Features:

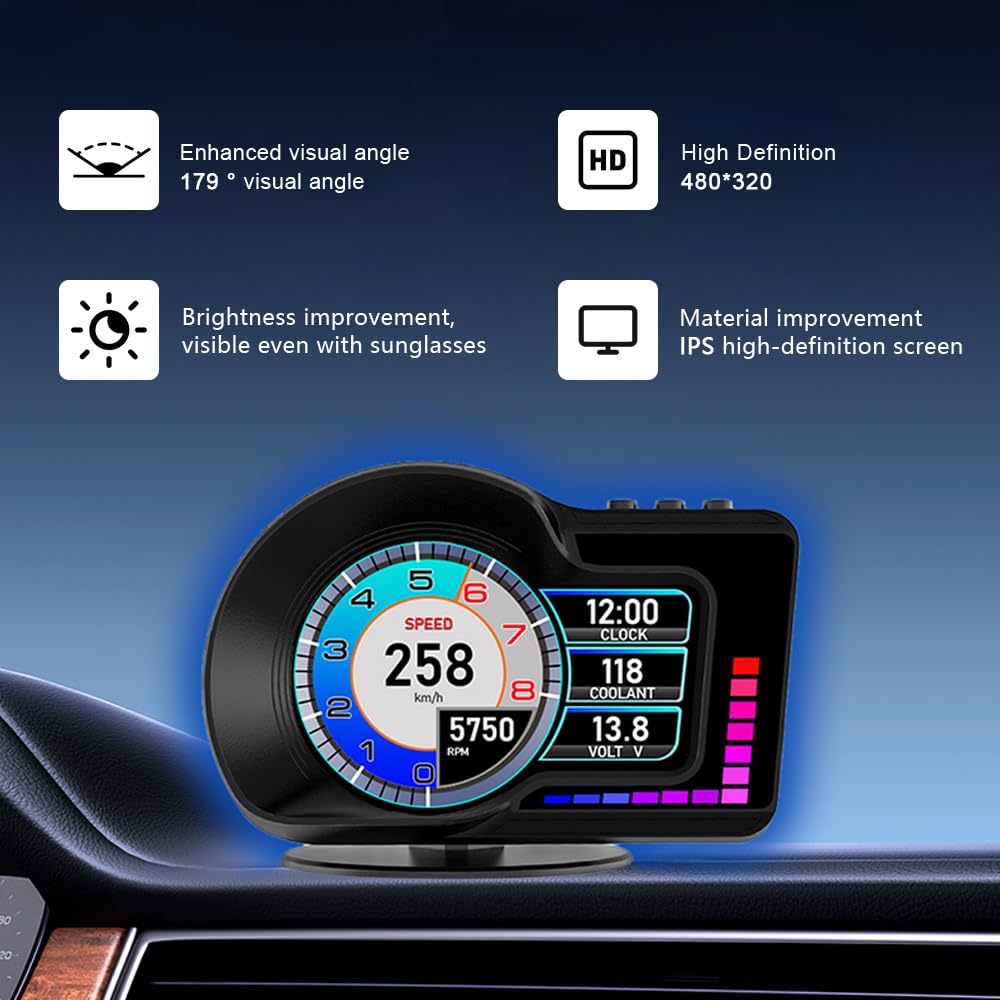

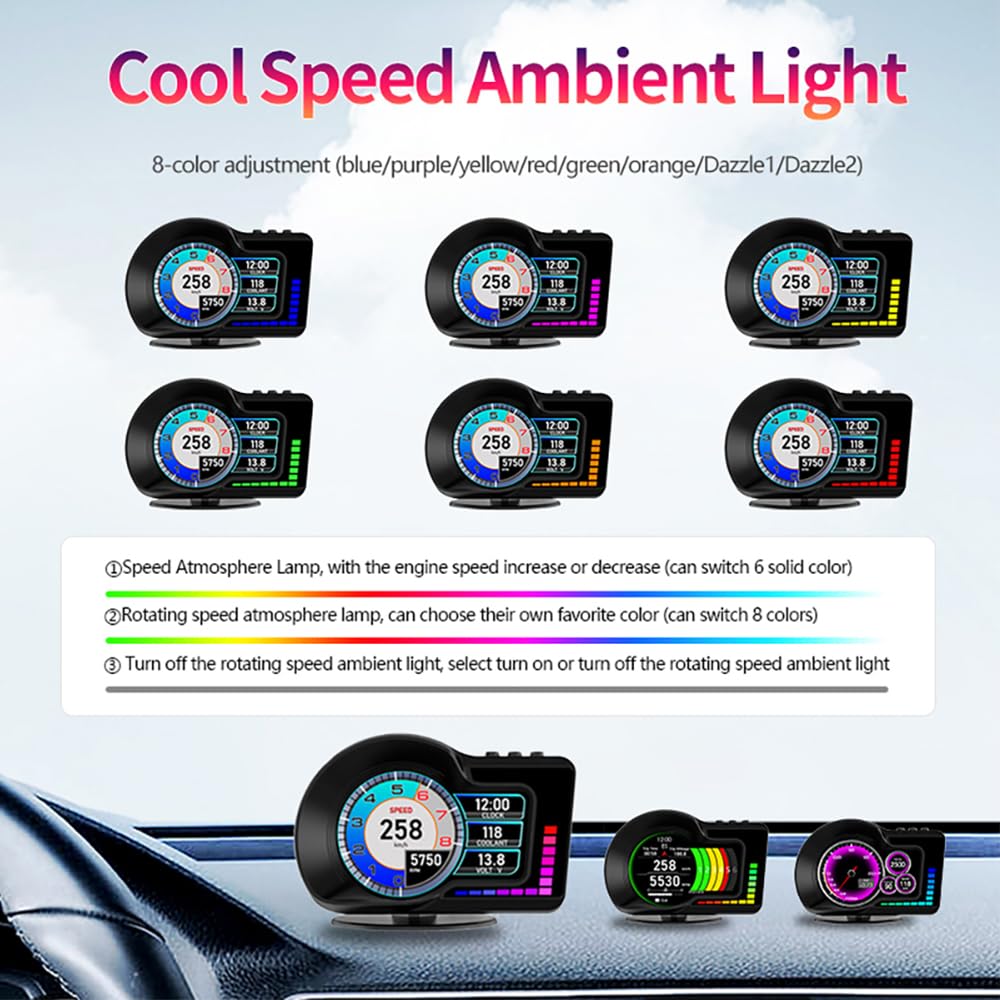

3.5 inch IPS screen with 179 ° visual angle, 480 * 320 resolutionSupport multi-color atmosphere lights and brightness improvementEasy to install, plug and play, support both windshield and dashboard mount

HUD Application

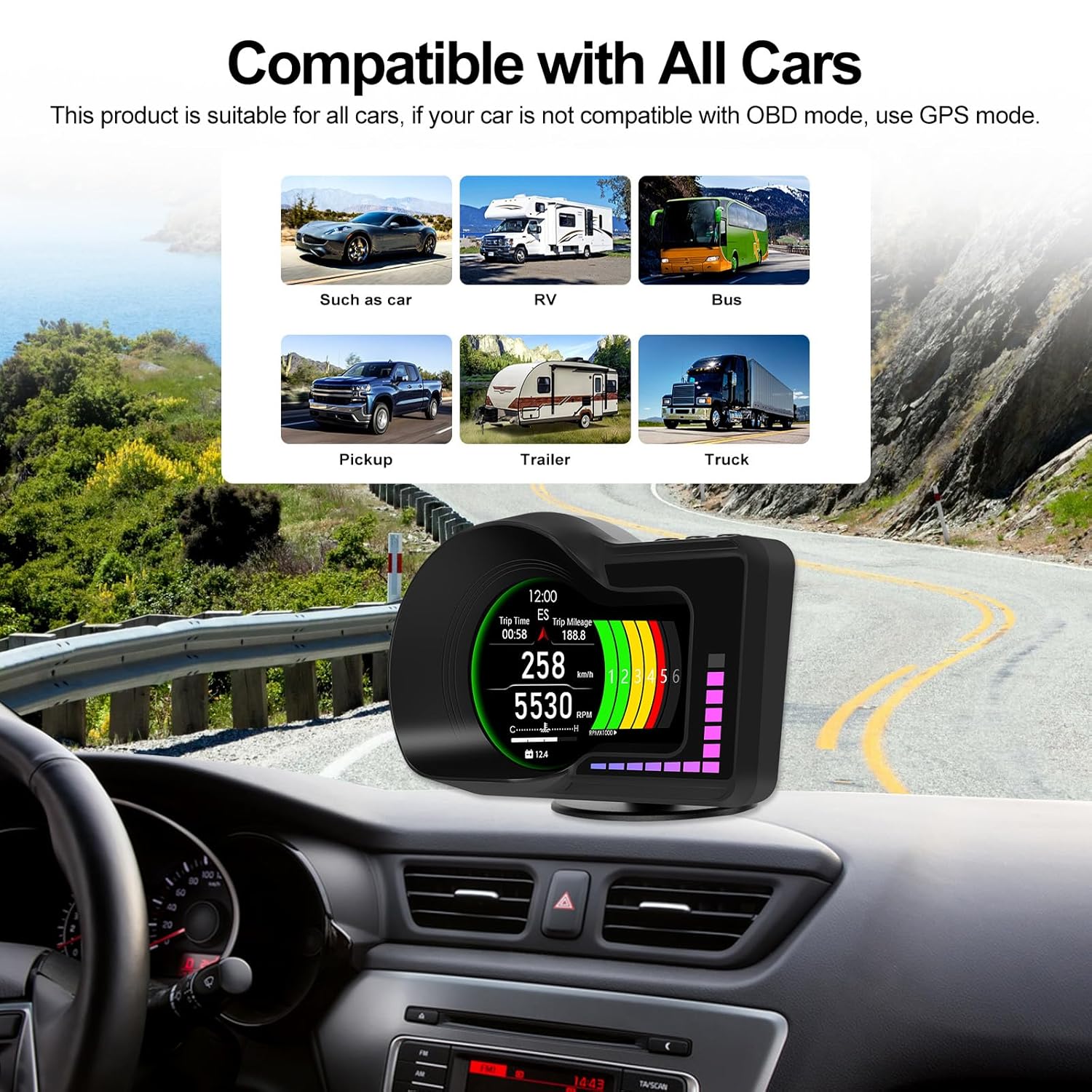

The OBD2 is compatible with European cars after 2008 and cars of other regions after 2010.The GPS mode is suitable for all vehicles (If your car is not OBD compatible, you can use GPS mode).

OBD system incompatibility:

Not compatible with automotive protocols: JOBD and OBDI

Specifications

Head Up Display F16

Compatible models: all models with OBD interfaceDimensions: 104*77*27mm/4*3*1 inchesWeight: 91g/3.2ozAdaptation: fuel vehicles after 2007Function: Display: speed/engine RPM/drving distance/water temperature/voltage/mile/Kilometer/instant fuel consumption/average fuel consumption/5 Display UI Alarms: over speed alarm (sigle alarm/ four alarm) / high water temperature alarm / lower battery alarm / detecting and eliminating fault code / fatigue driving reminder

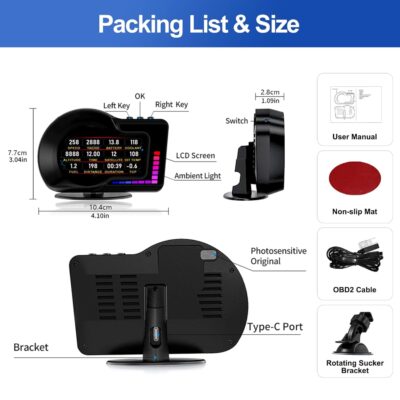

Product List

1 x HUD speedometer

1 x OBD2 cable

1 x Fixing bracket

1 x Fixing glue

1 x User manual

How To Install:

Insert the OBD interface connectorPlug the wire into the A-Pillar seal.Connect one end of the OBD interface into the HUD and place the HUD in a suitable position.Start the engine, then turn on the power switch.The meter is powered on for self-test and displays the startup screen. After the self-test is completed, it enters the working interface and the insallation is completed.

Kindly Attention:

If you didn’t drive for more than a week, please disconnect it. Because the OBD device is a regular battery of a car battery, it is recommended to unplug the OBD device when the car is not used for a long time due to different vehicle conditions.

OBD2 FAQs:

1. Display on the screen, no power

Check whether the OBD line is tight, pull it down and plug it repeatedly several times. If the recommended test, the OBD diagnosis interface is broken. If the OBD diagnosis is bad, it is recommended to repair the OBD interface and connect the machine again.

2. Power ized, but only the screen, automatically off after 30 seconds

This product is the only only available for OBDII and EOBD in OBD2 mode. Year of vehicle production (08 years after, OBDII and EOBD were started). OBD I and JOBD are not supported in this product OBD2 modeSwitch to GPS system

3. There is an error between the vehicle speed and the instrument panel display

Check the correct km KM / mile MPH (speed unit switching reference settings)After the normal display, enter the system setting, select “speed error adjustment” for fine-tuning (such as the instrument shows 100 Km/h equipment shows 105 Km/h, and dial the parameter value to 102).

4. Unable to shut down

After the car stops off, the machine cannot be turned down. Select “Shutdown voltage Settings” to 13.2V or 13.6V, and the car will automatically shut down for 3 minutes.

The GPS Speedometer FAQs:

1. No speed

After power on, GPS is the star search state, please move the car to the open road, GPS shows above 5 means that more than 5 satellites can be used normally

【OBD2+GPS System 2 in 1】This car heads up display has OBD2 mode & GPS gauge dual system, which can display car data intuitively on the product screen. You don’t need to look down to view your car data during driving, keeps you safe on the go.
【OBD2 Gauge Display】Powerful hud display can display vehicles speed, water temperature, oil temperature, voltage, fuel consumption, RPM, clock, one-way driving distance, one-way driving time, travel direction, altitude, latitude and longitude, acceleration test, brake test, supports speed alarm to avoid speeding ticket, detect and eliminate fault code, high water temperature alarm, lower battery alarm, fatigue driving reminder. However, each car will shows different data because of protocol compatibility and openness.
【GPS System and Function】This product is a GPS system HUD display that receives satellite signals. After connecting this product to your car, the product will start searching for satellite signals. After finding the satellite signal, the product can display your car data and driving data on the screen. The HUD display has many functions, such as: altitude, gps speed, driving distance, driving direction, driving distance time, date and so on.

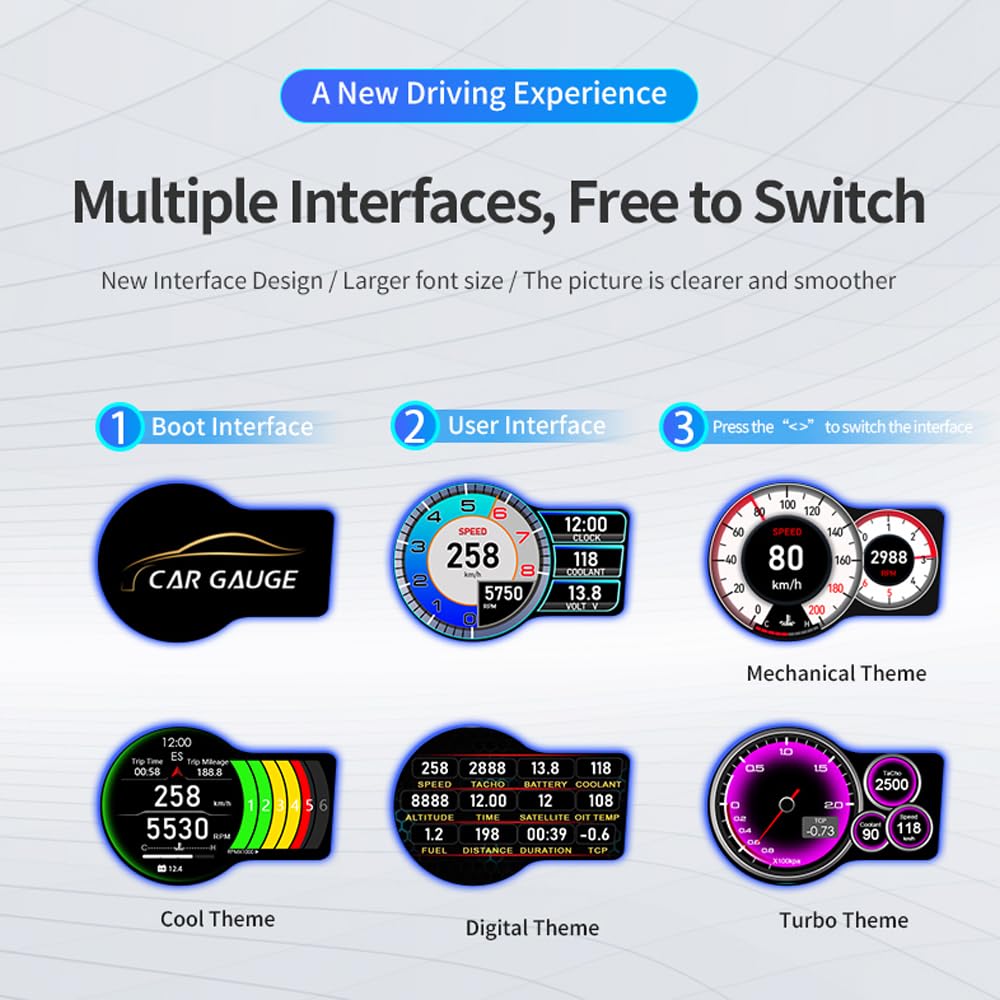

【Appearance and UI】There are multiple display interfaces that can be freely switched as you need. The head up display can change its brightness according to the external environment, whether it is day or night, you can view data clearly.

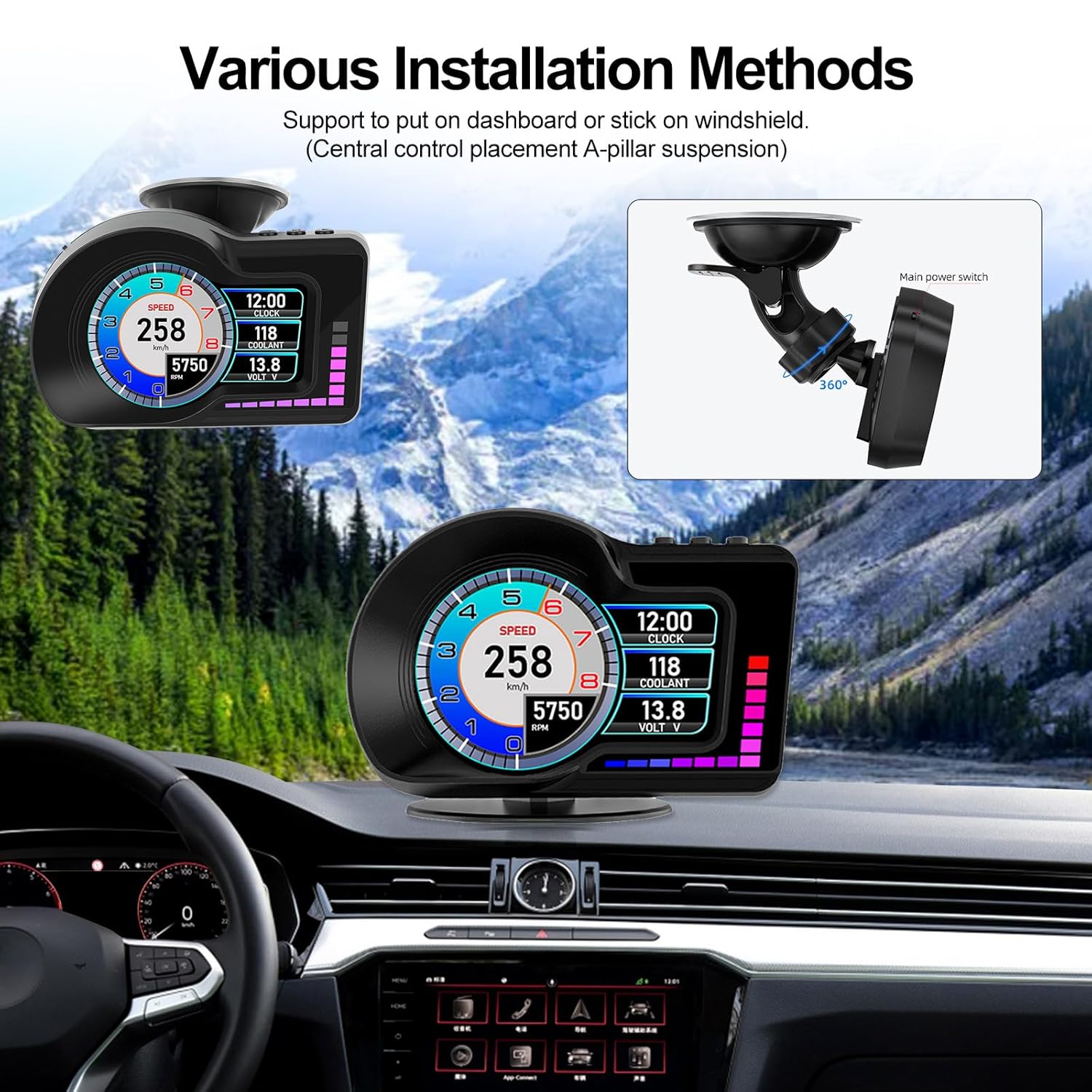

【Vhicles Compatibility】OBD2 is only available for vehicles after 2008, while GPS mode supports all vehicles. If your car is not compatible with OBD mode, please use GPS mode. The product has a base to ensure secure mounting on your car, simply install on the dashboard or stick it on the windshield, the bracket can be rotated in all direction to adjust the visual angel and effect.
