Electric Bike LCD Display, 5 Pin E Scooter M5 Panel Meter Screen with Waterproof Connector, E Bike Display Meter Control Panel Screen Suitable for 31.8 22.2mm Handlebar Electric Bike(No. 2 Protocol)
$36.99
Guaranteed Safe Checkout
Features & Compatibility
Price: [price_with_discount]
(as of [price_update_date] – Details)
[ad_1]
Product description

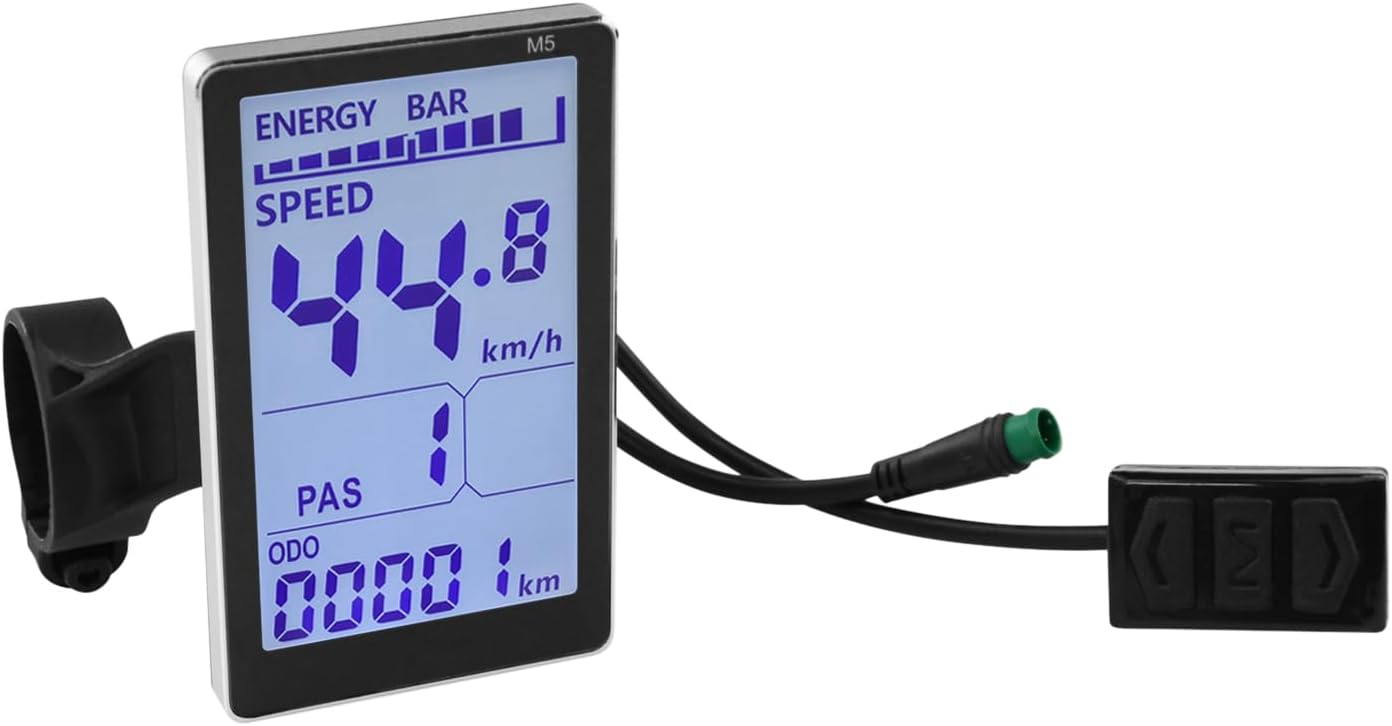

Flylin Electric Bike LCD Display, 24V 36V 48V 60V 5 Pin E Scooter M5 Panel Meter Screen with Waterproof Connector
Q1: What is the communication protocol? How many pins is the interface?
A: The communication protocol is No.2 protocol. This is a 5‑pin product, and the connector needs to match the pin definition of the product to work.
Q2: How to deal with the error E10 fault code?
A: 1. Check the instrument and the controller docking port, there is no poor contact, plug and play, there is no wiring error; 2. Check the turnbuckle or booster there is no short‑circuit, wiring there is no error; 3. Is not connected to the excess power of the lamps or horns and other accessories, through the instrument door control power supply of the external equipment should not be more than the total power of 5W.
Q3: How to restore factory Settings?
A: Enter the instrument parameter setting interface, switch to P16 parameter, long press the plus key for 10 seconds to restore factory Settings, long press the minus key for 10 seconds to clear the total mileage.
Clear display
The high-resolution LCD screen provides clear and easy-to-read information display in both strong light and dim environment, allowing you to easily obtain various vehicle data.For example, key information such as speed, power, mileage, etc. are clear at a glance
Durable material
The shell is made of sturdy and durable materials that can withstand collisions and wear in daily use and extend its service life

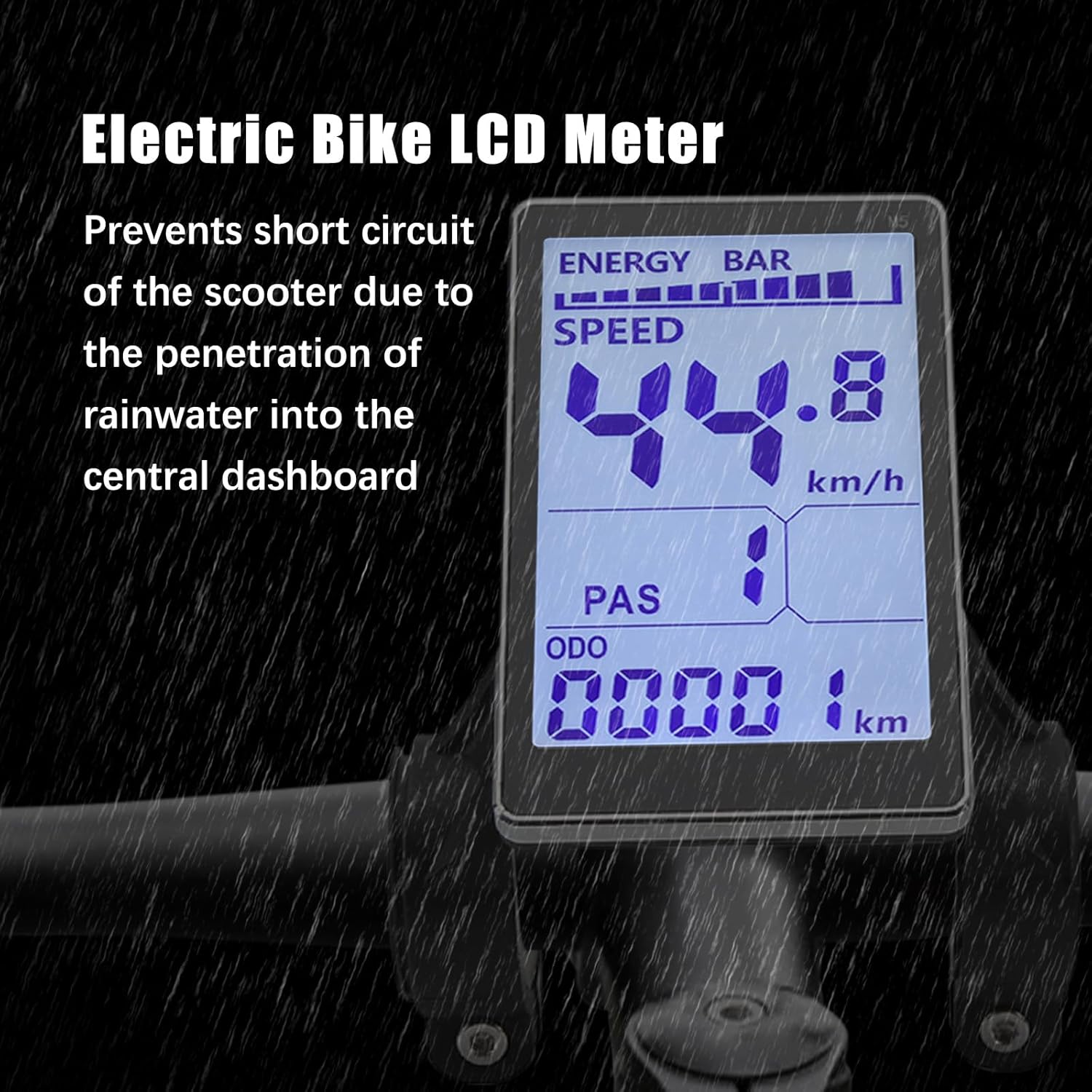

Waterproof and dustproof
It has good waterproof and dustproof performance, can adapt to various harsh weather and road environments, and protect the internal components of the instrument from damage.Even when driving on rainy days or dusty roads, it can ensure the normal operation of the instrument
Please note:

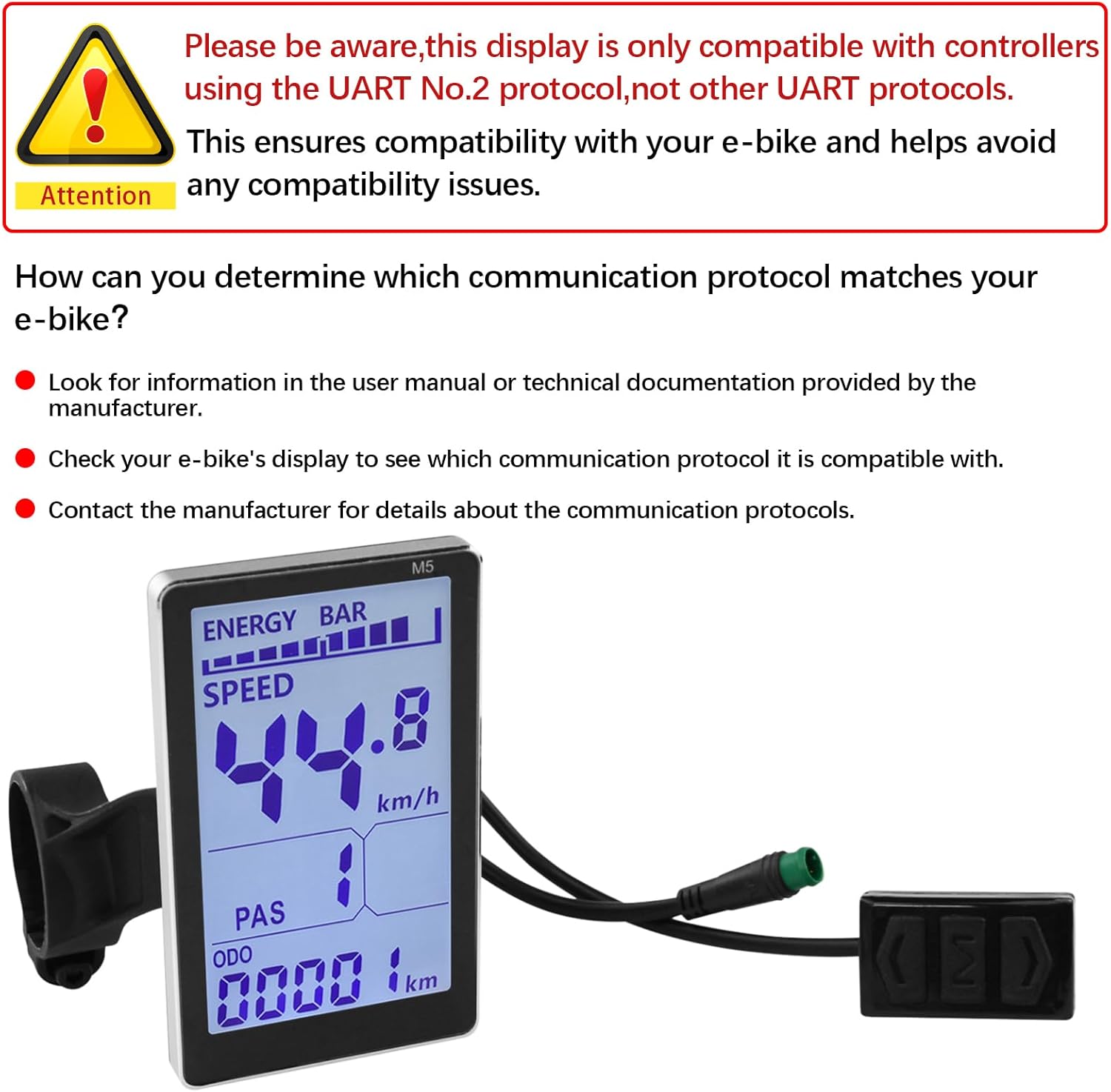

Before using, please make sure that the line sequence is consistent with our five-core waterproof wire head. Also, be sure to pay attention to whether the instrument is a No. 2 protocol controller, and only use No. 2 protocol
Real-time monitoring
It can monitor various parameters of the vehicle in real time, provide you with accurate and timely information, and help you better understand the status of the vehicle
Compatible with protocol 2
Electric Bicycle LCD Display Meter is No. 2 communication protocol, need to be used with No. 2 communication protocol controller, otherwise it is not compatible
Portable and convenient
Small Size, Light Weight, Wireless & Waterproof design make the bicycle odometer more convenient and durable
Adjustable backlight brightness
The M5 display can adjust the contrast of the display according to different lighting conditions. Whether it is day or night, you can read the data more easily and clearly
Stability and Durability
Designed with a simple LCD display and durable wires and connectors,this electric bike computer ensures long-term use with low malfunction rates
5-pin Ebike LCD Display

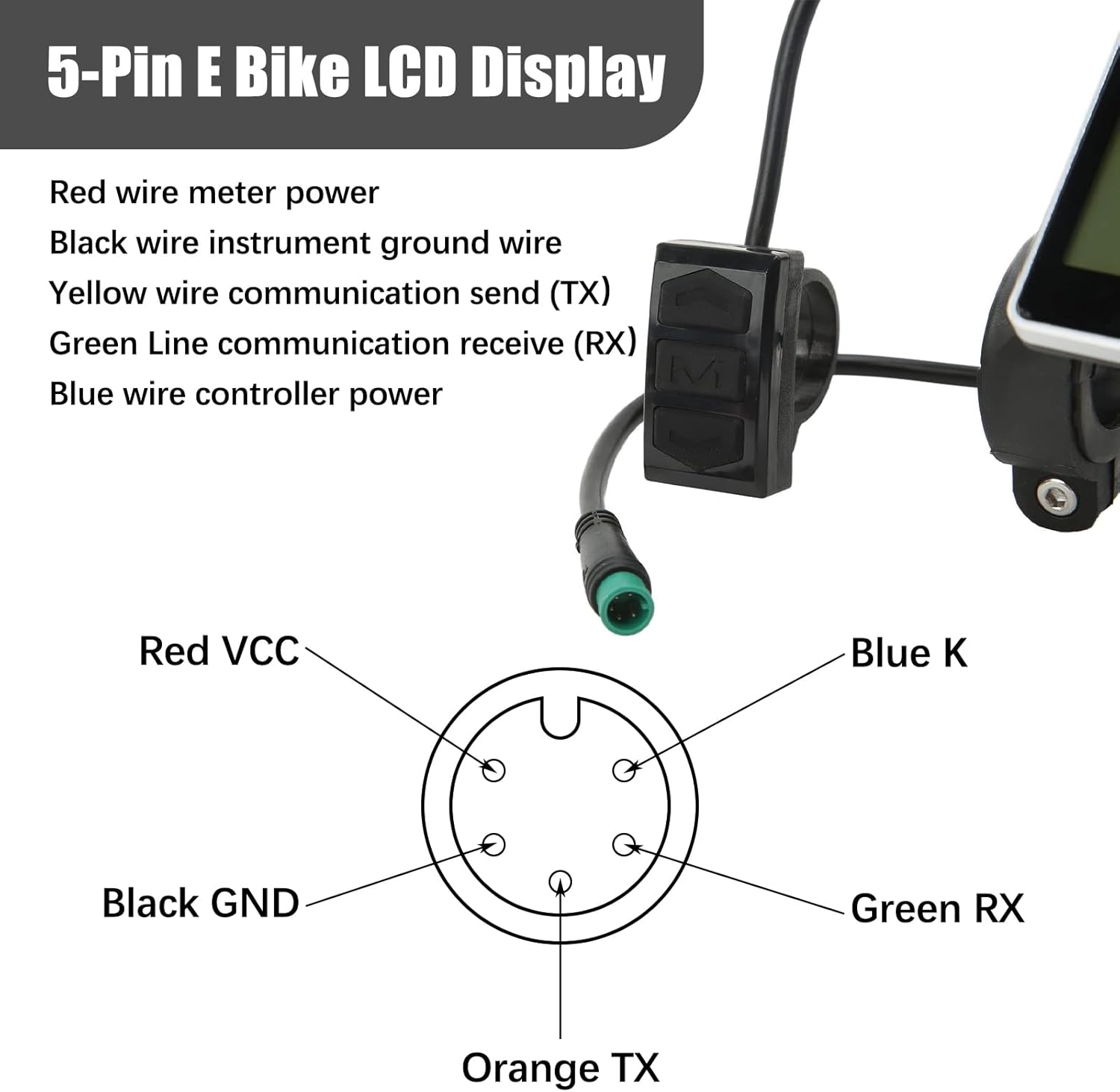

The 5-core waterproof quick-release interface improves the reliability of the entire instrument system. It can be quickly disassembled, has a stable connection, and has better waterproof performance, extending the service life of the instrument
Excellent Replacement
The display panel is a perfect replacement part for old or damaged parts,making it a great accessory for electric bikes,scooters,and other vehicles
Easy Installation

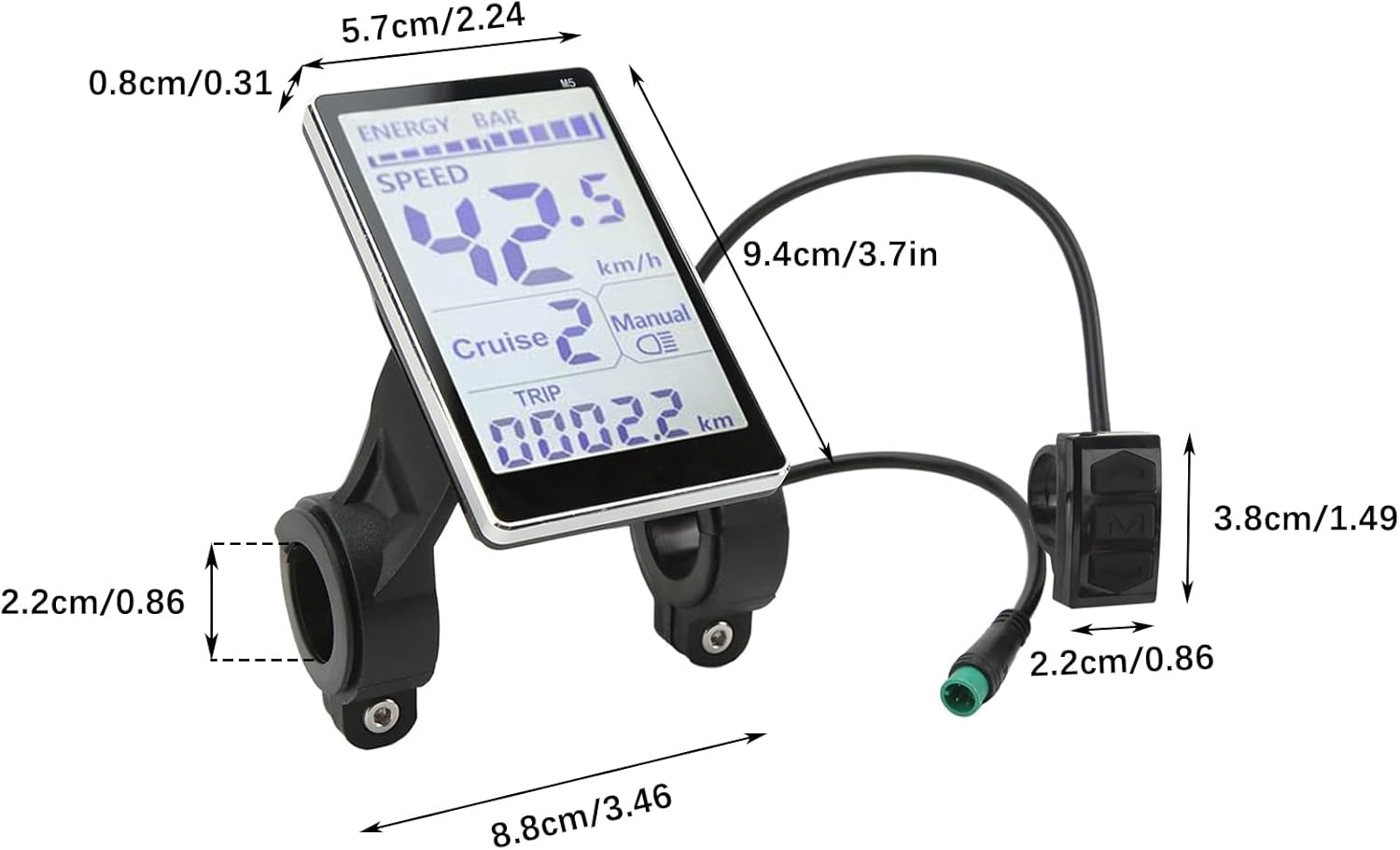

With a mounting diameter of 31.8mm or optional 22.2mm,this electric bike computer can be easily installed on various models of electric bikes, scooters.and skateboards
Superior Quality Material
The LCD screen of the M5 electric bike is made of high-quality ABS material,which is durable,wear resistant,and has a long service life,making it a top choice for serious riders
【Versatile Compatibility】This E Bike Display Meter Control Panel Screen is suitable for both 24V, 36V, 48V, and 60V systems, making it a perfect fit for a wide range of electric bicycles and scooters. Ensure compatibility by confirming your bicycle controller follows the No.2 communication protocol, Also, you must ensure that the line sequence is consistent

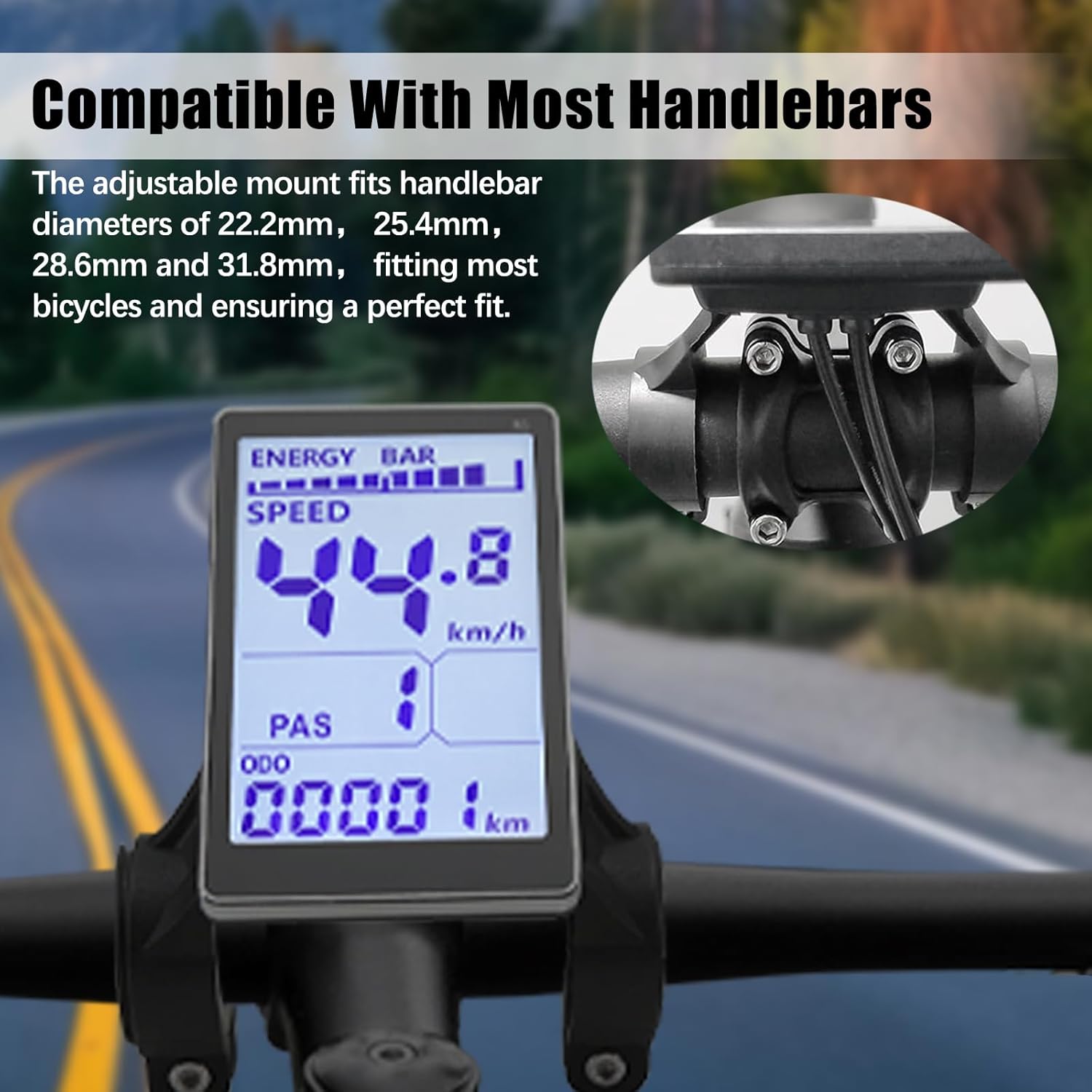

【Easy to Install】With our user-friendly design and included 5-core common cable (SM-5Y), cable length exposed: 1800mm, installing the ebike LCD display is a breeze. The flexible bracket fits handlebar sizes of 22.2mm, 25.4mm and 31.8mm, ensuring a perfect fit for most bikes

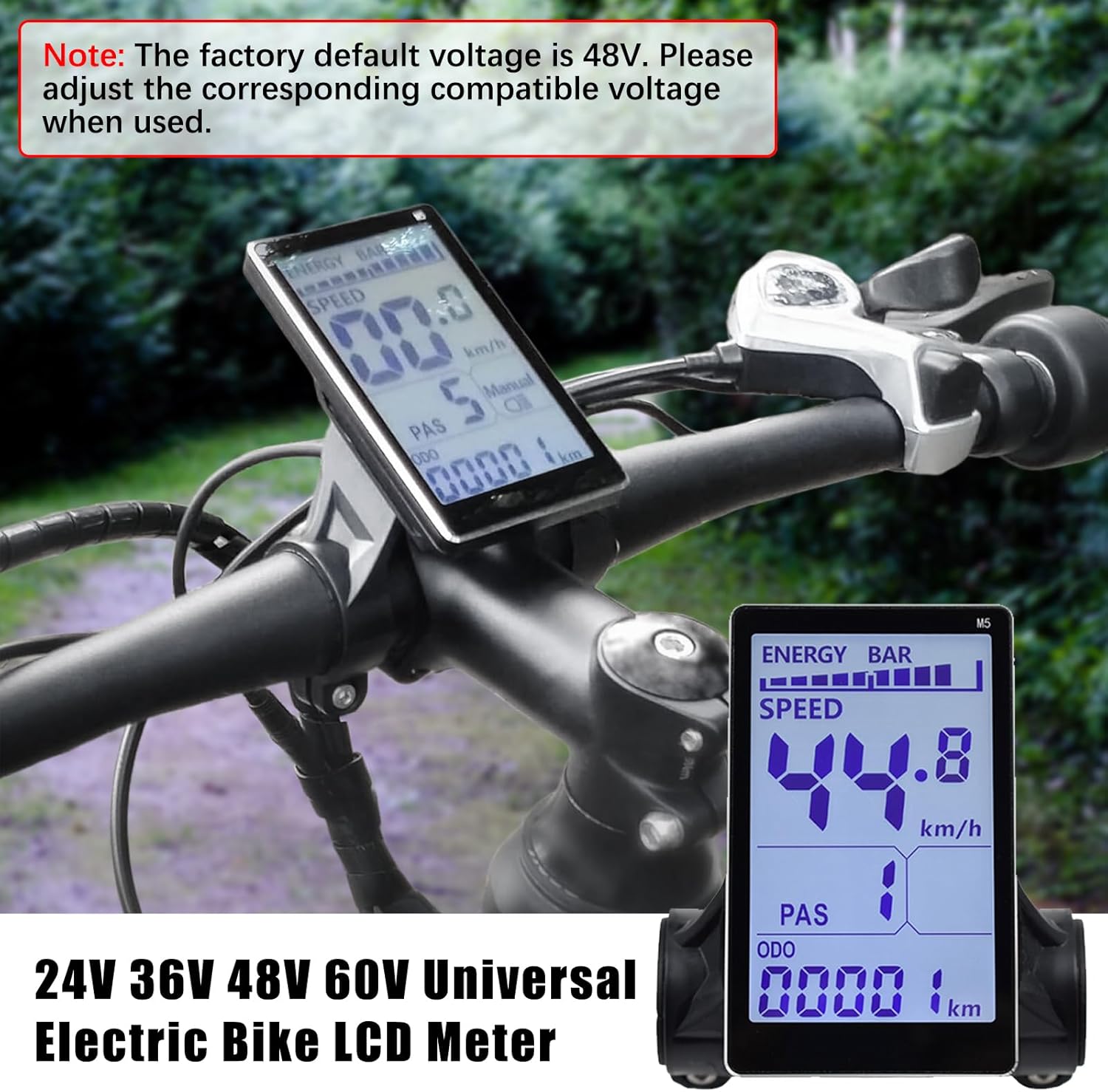

【Warm Tips】Please consult the manufacturer of your electric bicycle controller model before purchasing, and confirm whether it is consistent with our five-core line sequence. At the same time, please install according to the size of our product picture, otherwise it will not be installed successfully. The default factory voltage is set to 48V, please pay attention to adjust the voltage value when using it
【LCD Display Cycling Computer】Take charge of your ride with the versatile features of our cycling computer, including walk-assist mode, cruise control, real-time trip and total mileage tracking, voltage display, and the ability to modify key bike parameters such as wheel diameter and speed limits
【Immersive Riding Experience】Transform your electric bike journeys into thrilling adventures with our advanced ebike LCD display. Stay informed and engaged with real-time data and insights right at your fingertips
【Built to Conquer】Our ebike display is engineered to withstand the toughest terrains and weather conditions. Crafted with a rugged ABS and PC housing, aluminum alloy frame, tempered glass screen, and nylon bracket, it ensures durability and performance that goes the extra mile
【Frequently Asked Questions】1. The meter turns on but doesn’t work properly? If the positive and negative terminals are connected correctly, the meter should turn on and set up normally. However, if the wiring sequence or protocol mismatch occurs, the product may not work properly. 2. The speedometer doesn’t work? Please first confirm your wheel diameter, then adjust the wheel diameter to match. 3. Why doesn’t it have a headlight function? Which requires a six-pin port
[ad_2]
Mitchell Price –
Compatability
I think this item was a well made instrument but it wouldn’t work with my Totem Victor bike. Something about “communications”…Just make sure it fits your harness. I did get a refund & found i that worked.
Ashley Hawkins –
Looks good. Doesn’t work with bike.
Everything plugs up right, but it doesn’t work with the bike. Had to get one from factory.
Dave –
Good
Good
Kindle Customer –
Semi compatible with Lectric 3.0
Lectric 3.0 not completely compatible. Light stays on not controllable. instruction somewhat helpful for other options, went with memorized original Lectric instruction.. For sons bike okay, if my bike I would of returned. Usable replacement.
Hamish –
Solid replacement for G51 display, better if wire lengths were switched
We got our teenage nephew an e-bike as a reward for good grades and of course, kid broke the display immediately. This replacement works very well. It was easy to install (and show the teenager how to do it), has all the required functions and is a nice display. Just taking one star off because the wire for the buttons is unnecessarily long – if you mount the display at the center of the handlebars and the buttons near the grips, you’ll have 2-3 inches of slack wire, which looks untidy and can catch on stuff. At the same time, the wire for the connector could actually do with having that length added. It connects up okay, but isn’t long enough to make it all the way to the top of the fabric tube rolled around the various wire to keep them neat. Still, the display does everything that’s needed and the teen actually prefers the look of this one over the original.Since I did a lot of googling to try and figure out compatibility and still wasn’t sure on this: we replaced a standard G51 display on a Nishiki bike (Dick’s house brand) with this display, and yes, it worked just fine. Hope that’s helpful for someone else googling for this in the future!
Lawrence E Couturier –
Manufacture
The product worked excellent
Larry VanTol –
Compatibility is very hard
One star is not for the product, the five pin connector was slightly larger than mine. I’m not smart enough to know every little detail to pick the right computer screen for my bike. Like everything else in this world I wish there was more standardizations of components for e-bikes.
Chad trammell –
Nice for ebike
Great display wouldn’t fit my bike but fit my brother in laws fine. Very clear and great quality would recommend.
